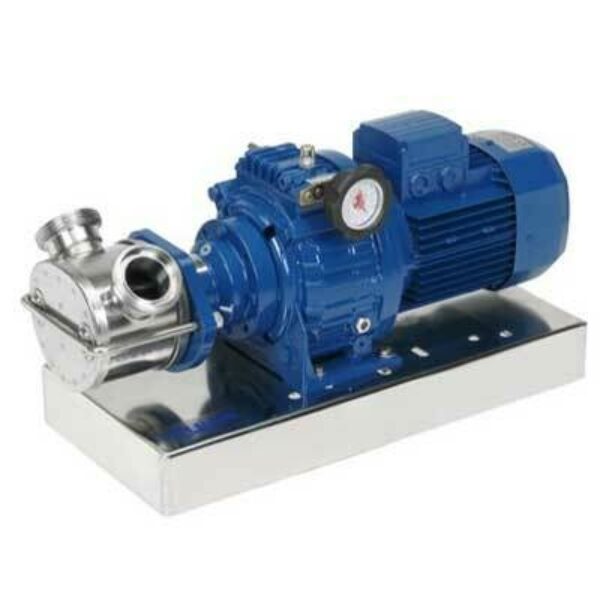

Flexible Impeller Pumps

Flexible vane pumps for foods, chemicals, viscous slurries and more

The flexible impeller pump, or flexible vane pump as it is otherwise referred to, is a versatile pump design, part of the positive displacement pump family. Thanks to the supple nature of the impellers, as they rotor they are connected to turn, they bend to push the fluid from the pump inlet to its outlet. The beauty of the flexible impeller pump is it's versatility thanks to the multiple materials the impellers are available in. It serves a wide range of applications and industries at a lower relative cost than other pumping technologies that can handle fluids of all types including solids, viscous slurries, light water based fluids and lubricating oils.  Flexible Impeller Overview Brochure

Castle Pumps offer a quality, Italian made flexible impeller pump range designed for long service life in almost any industrial process, with food grade and chemical resistant models available.

For an overview on the performance benefits, specifications and models in our range of flexible vane pumps, view our brochure here.

View more information about Flexible Impeller Pumps

The flexible impeller pump, or flexible vane pump as it is otherwise referred to, is a versatile pump design, part of the positive displacement pump family. Thanks to the supple nature of the impellers, as they rotor they are connected to turn, they bend to push the fluid from the pump inlet to its outlet. The beauty of the flexible impeller pump is it's versatility thanks to the multiple materials the impellers are available in. It serves a wide range of applications and industries at a lower relative cost than other pumping technologies that can handle fluids of all types including solids, viscous slurries, light water based fluids and lubricating oils.  Flexible Impeller Overview Brochure

Castle Pumps offer a quality, Italian made flexible impeller pump range designed for long service life in almost any industrial process, with food grade and chemical resistant models available.

For an overview on the performance benefits, specifications and models in our range of flexible vane pumps, view our brochure here.

Performance benefits of the flexible impeller pump design include:

Supple impellers bend to pass viscous fluids and solids without damage
Applies low shear for delicate fluids that can be damaged or altered by other pump types
Reversible operation for tank to tank transfer, and cleaning solution to be ran through after use for CIP
Food grade FDA certified EPDM/NBR impellers and Stainless Steel sanitary full enclosures available
Flexible impeller pumps have smooth, steady flow even at low flow rates for accurate dosing and filling
Self-priming up to 6m for emptying sumps, tanks and IBCs without manual priming

Flexible vane pumps pumps are commonly utilised food & drink processing, cosmetics & pharmaceutical, chemical industry, general manufacturing and oil and fuel transfer.

Refine your results by:

Update Results

Type

From Stock
AODD Pumps
Air Operated Pumps
Barrel Pumps
Booster Sets
Borehole Pumps
Centrifugal Pumps
DIN24255/ EN733 Pumps
Flexible Impeller Pumps
Gear Pumps
Hand Pumps
Jet Pumps
Lobe Pumps
Magnetic Drive Pumps
Multistage Pumps
Peripheral Pumps
Peristaltic Pumps
Piston Pumps
Progressive Cavity Pumps
Screw Pumps
Self Priming Centrifugal Pumps
Side Channel Pumps
Split Casing Pumps
Submersible Pumps
Vane Pumps
Vertical Immersion Pumps
Vertical Inline Pumps

Application

Abrasive Fluid Pumps
Adhesive & Resin Pumps
Aquaculture Pumps
ATEX Pumps
Ballast Pumps
Bilge Pumps
Biogas Pumps
Boiler Feed Pumps
Brewery Pumps
Brine Pumps
Cargo Pumps
Chemical Pumps
Condensate Pumps
Cooling Pumps
Corrosive Liquid Pumps
Deck Wash Pumps
Dosing Pump
Dredging Pumps
Edible Oil Pumps
Fire Fighting Pumps
Fish Waste Pumps
Food Grade Pumps
Fresh Water Cooling Pumps
Fuel Transfer Pumps
Fume Scrubber Pumps
Grease Pumps
Grey Water Pumps
High Viscosity Pumps
Hygienic Pumps
Irrigation Pumps
Low Shear Pumps
Lubricant Pumps
Marine Fuel Pumps
Paper Pulp Pumps
Pressure Booster Pumps
Process Water Pumps
Reverse Osmosis Pumps
Sea Water Cooling Pumps
Sea Water Injection Pumps
Sea Water Service Pumps
Sewage Pumps
Sludge & Slurry Pumps
Solid Handling Pumps
Swimming Pool Pumps
Thermal Oil Pumps
Waste Water Pumps
Water Circulating Pumps
From Stock

Manufacturer

From Stock
Azcue Pumps & Spares
Binda
Bombas Trief
Bombas Boyser
CAT Pumps & Spares
Debem
Etatron
Flux
GemmeCotti
Grundfos
HCP
Japy
Liverani
Raasm
Savino Barbera
Sero
Tsurumi

Material

From Stock
Aluminium
Bronze
Cast Iron
Duplex
PP
PVDF
Stainless Steel

Max. Flow Rate

From Stock
0-1M³H (For Dosing)
1-15M³H
16M³H - 50M³H
51M³H - 100M³H
101M³H - 200M³H
201M³H - 500M³H
501M³H - 1000M³H
1001M³H - 2000M³H
2001M³H - 4000M³H

Priming

From Stock
Flooded Suction
Self Priming

Orientation

From Stock
Horizontal
Immersed
Vertical

Pressure

From Stock
0-50M
51M - 100M
101M - 200M
201M to 300M
301M - 400M
401M - 500M
501M +

Drive

Air
Electric
Engine
Hydraulic
From Stock

Update Results




8 Results

Sort by:

Liverani FEP Flexible Impeller Pump

Liverani FEP Flexible Impeller Pump

  • Up to 44 M³H
  • Max. Head 32M
  • Max. Temp 100°C
  • DN20 - DN100 mm Outlet
  • Max. Viscosity 50,000 cP
Liverani GR Flexible Impeller Pump

Liverani GR Flexible Impeller Pump

  • Up to 44 M³H
  • Max. Head 24M
  • Max. Temp 100°C
  • 1” BSP F up to DN 100 mm Outlet
  • Max. Viscosity 50,000 cP
Liverani INV BS Flexible Impeller Pump

Liverani INV BS Flexible Impeller Pump

  • Up to 22.5 M³H
  • Max. Head 32M
  • Max. Temp 100°C
  • 1” BSP F up to 2½” RJT Outlet
  • Max. Viscosity 50,000 cP
Liverani Miniverter Flexible Impeller Pump

Liverani Miniverter Flexible Impeller Pump

  • Up to 5.76 M³H
  • Max. Head 32M
  • Max. Temp 100°C
  • ¾” BSP M up to 1½” RJT Outlet
  • Max. Viscosity 50,000 cP
Liverani RID Flexible Impeller Pump

Liverani RID Flexible Impeller Pump

  • Up to 72 M³H
  • Max. Head 40M
  • Max. Temp 100°C
  • 1” BSP F up to DN 100 mm
  • Max. Viscosity 50,000 cP
Liverani S/P & MID Flexible Impeller Pump

Liverani S/P & MID Flexible Impeller Pump

  • Up to 44 M³H
  • Max. Head 32M
  • Max. Temp 100°C
  • ¾” up to 3” Outlet
  • Max. Viscosity 50,000 cP
Liverani INV Flexible Impeller Pump

Liverani INV Flexible Impeller Pump

  • Up to 72 M³H
  • Max. Head 40M
  • Max. Temp 100°C
  • ¾” BSP M up to DN 100 mm Outlet
  • Max. Viscosity 50,000 cP
Liverani VA Flexible Impeller Pump

Liverani VA Flexible Impeller Pump

  • Up to 44 M³H
  • Max. Head 27M
  • Max. Temp 100°C
  • 1” BSP F up to DN 100 mmOutlet
  • Max. Viscosity 50,000 cP

8 Results
