Self Priming Pumps Page 1

Self priming centrifugal pumps for water & light fuel transfer

A standard pump needs to have a suction pressure to operate. If a pump is situated above the liquid level such as on top of a tank then the pump needs to self prime to draw the liquid in to the inlet. A self priming pump should have the casing filled with liquid prior to start up. Upon starting, the pump creates a vacuum ensuring liquid is drawn towards the inlet of the pump, separating the air from the water. The air is discharged through the outlet with the liquid remaining in the pump until sufficient liquid enters the pump.

View more information about Self Priming Pumps

The liquid placed in the pump head prior to start up is needed to allow the pump to cool and assist with priming. As well as light fuels and water, self priming pumps can also handle solids, and liquids with entrained air.

Self priming pumps are used for a variety of applications including:

Water transfer
Seawater transfer
Light fuel transfer
Boiler circulation
Inert gas cooling
Bilge pumping
Air conditioning supply
Fire fighting

Self priming water pumps should be positioned as close as possible to the suction surface as the maximum distance any pump is able to self-prime is 10 metres at atmospheric pressure.

Sort by:

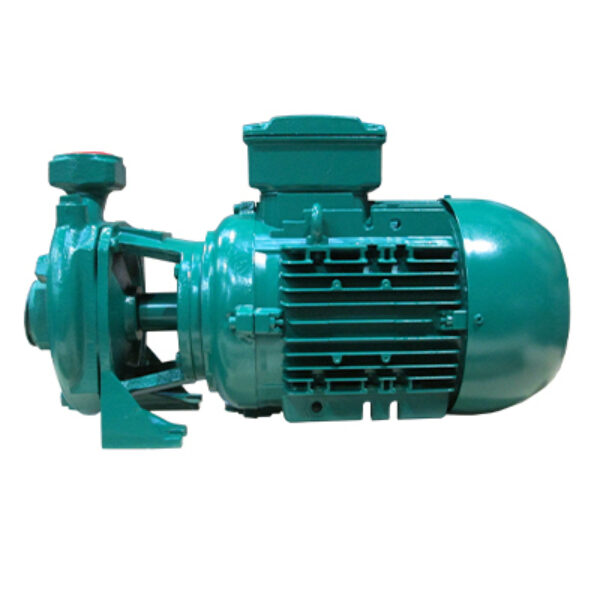

Azcue CA Close Coupled Self Priming Centrifugal Pump

Azcue CA Close Coupled Self Priming Centrifugal Pump

  • Up to 300M³H
  • Max. Head 105M
  • Max. Temp 130°C
  • DN1.25” - DN150 Outlet
Azcue MN VP/EP Close Coupled Self Priming Centrifugal Pump

Azcue MN VP/EP Close Coupled Self Priming Centrifugal Pump

  • ​Up to 500M³H
  • Max. Head 100M
  • Max. Temp 120°C
  • DN32 - DN150 Outlet

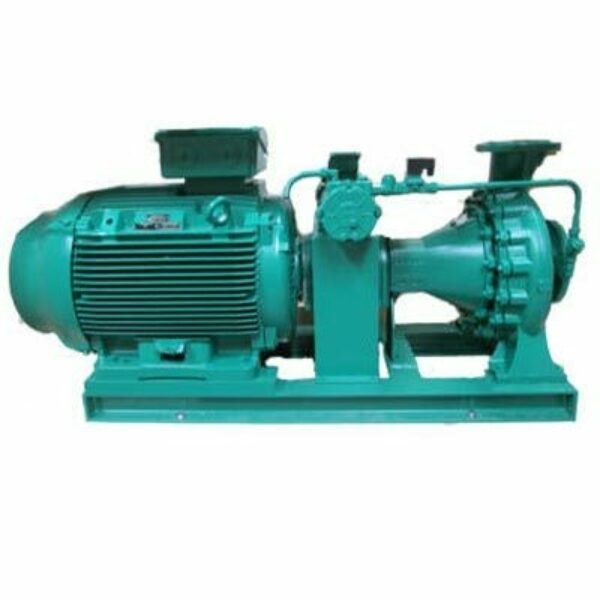

Azcue AN VP/EP Long Coupled Self Priming Centrifugal Pump

Azcue AN VP/EP Long Coupled Self Priming Centrifugal Pump

  • ​Up to 700M³H
  • Max. Head 100M
  • Max. Temp 190°C
  • DN32 - DN150 Outlet
Azcue BOB VP/EP Long Coupled Self Priming Centrifugal Pump

Azcue BOB VP/EP Long Coupled Self Priming Centrifugal Pump

  • ​Up to 2000M³H
  • Max. Head 150M
  • Max. Temp 120°C
  • DN100 - DN250 Outlet

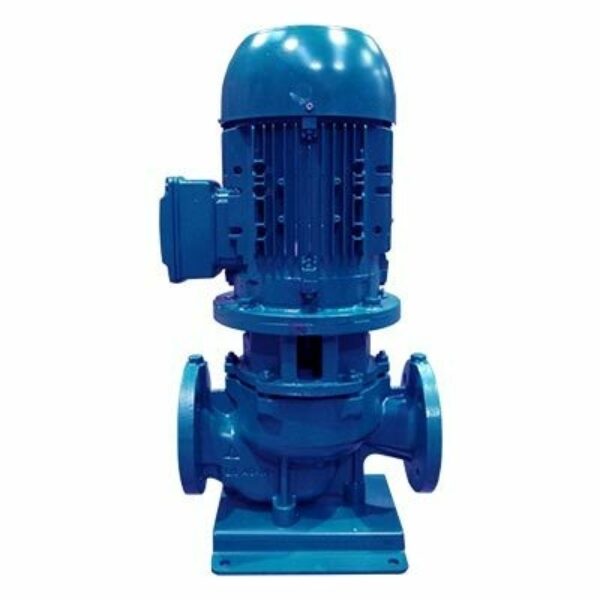

Azcue LN VP/EP Self Priming Vertical Inline Centrifugal Pump

Azcue LN VP/EP Self Priming Vertical Inline Centrifugal Pump

  • Up to 700M³H
  • Max. Head 100M
  • Max. Temp 120°C
  • DN50 - 250 Outlet
Azcue CM VP/EP Self Priming Vertical Inline Centrifugal Pump

Azcue CM VP/EP Self Priming Vertical Inline Centrifugal Pump

  • Up to 1500M³H
  • Max. Head 130M
  • Max. Temp 130°C
  • DN50 - 250 Outlet
Azcue VM & VR VP/EP Self Priming Vertical Inline Centrifugal Pump

Azcue VM & VR VP/EP Self Priming Vertical Inline Centrifugal Pump

  • Up to 1500M³H
  • Max. Head 130M
  • Max. Temp 120°C
  • DN50 - 250 Outlet
Azcue VB & VA EP/VP Self Priming Vertical Inline Centrifugal Pump

Azcue VB & VA EP/VP Self Priming Vertical Inline Centrifugal Pump

  • Up to 2000M³H
  • Max. Head 190M
  • Max. Temp 120°C
  • DN150 - 250 Outlet
Azcue LD VP/EP Self Priming Double Suction Centrifugal Pump

Azcue LD VP/EP Self Priming Double Suction Centrifugal Pump

  • Up to 6000M³H
  • Max. Head 60M
  • Max. Temp 130°C
  • DN300 - 400 Outlet
Gemmecotti HTP Self Priming Vane Magnetic Drive Pump

Gemmecotti HTP Self Priming Vane Magnetic Drive Pump

  • Up to 2M³H
  • Max. Head 13 bar
  • Max. Temp 250°C
  • 3/8” - 1” Outlet
  • Max. Viscosity 2000 cPs
Savino Barbera SP & PA Self Priming Centrifugal Pumps

Savino Barbera SP & PA Self Priming Centrifugal Pumps

  • Up to 1400L/Min
  • Max. Head 4.5 bar
  • Max. Temp 90°C
  • DN20 - DN100 Outlet
Gemmecotti HTT-SP Regenerative Turbine Magnetic Drive Pump

Gemmecotti HTT-SP Regenerative Turbine Magnetic Drive Pump

  • Up to 6M³H
  • Max. Head 28M
  • Max. Temp 90°C
  • 1” Outlet

16 Results
