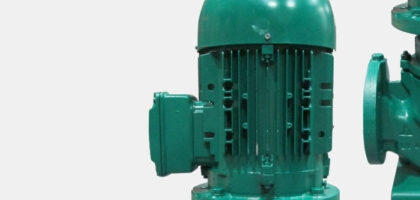

Vertical Inline Pumps Page 1

Vertical centrifugal pumps for low viscosity fluids

Vertical inline centrifugal pumps, as their name implies, are single stage centrifugal pumps that are specifically designed for vertical installation. Their suction and delivery are inline to provide a smooth flow of liquid through the system. Thanks to its upright design, a vertical inline pump is ideal for applications where space is an issue as its horizontal alternative can take up to 2-3 times more space. Vertical centrifugal pumps are common for the transfer of low viscosity fluids over a range of flow rates and heads.

View more information about Vertical Inline Pumps

Vertical inline pumps can be constructed as close or long coupled units with back pull out design. To maintain a close coupled back pull out designed pump, the motor must be removed at which point the impeller and other parts can be accessed. With a long coupled back pull out design vertical inline centrifugal pump, there is a cover plate that is removed meaning the internal parts can be accessed and removed without removing the motor.

Applications that commonly use vertical centrifugal pumps include:

Water supply
Fire fighting
Ballast pumping
Bilge pumping
Heating/cooling conditioning

Sort by:

Azcue LN Vertical Inline Centrifugal Pump

Azcue LN Vertical Inline Centrifugal Pump

  • Up to 700M³H
  • Max. Head 100M
  • Max. Temp 120°C
  • DN50 - 250 Outlet

Azcue LN VP/EP Self Priming Vertical Inline Centrifugal Pump

Azcue LN VP/EP Self Priming Vertical Inline Centrifugal Pump

  • Up to 700M³H
  • Max. Head 100M
  • Max. Temp 120°C
  • DN50 - 250 Outlet
Azcue VM & VR Vertical Inline Centrifugal Pump

Azcue VM & VR Vertical Inline Centrifugal Pump

  • Up to 1500M³H
  • Max. Head 130M
  • Max. Temp 120°C
  • DN50 - 250 Outlet
Azcue VM & VR ATEX Vertical Inline Centrifugal Pump

Azcue VM & VR ATEX Vertical Inline Centrifugal Pump

  • Up to 1500M³H
  • Max. Head 130M
  • Max. Temp 120°C
  • DN50 - 250 Outlet
Azcue VM & VR VP/EP Self Priming Vertical Inline Centrifugal Pump

Azcue VM & VR VP/EP Self Priming Vertical Inline Centrifugal Pump

  • Up to 1500M³H
  • Max. Head 130M
  • Max. Temp 120°C
  • DN50 - 250 Outlet
Azcue VM & VR VP/EP ATEX Self Priming Vertical Inline Centrifugal Pump

Azcue VM & VR VP/EP ATEX Self Priming Vertical Inline Centrifugal Pump

  • Up to 1500M³H
  • Max. Head 130M
  • Max. Temp 120°C
  • DN50 - 250 Outlet
Azcue CM Vertical Inline Centrifugal Pump

Azcue CM Vertical Inline Centrifugal Pump

  • Up to 1500M³H
  • Max. Head 130M
  • Max. Temp 130°C
  • DN50 - 250 Outlet
Azcue CM ATEX Vertical Inline Centrifugal Pump

Azcue CM ATEX Vertical Inline Centrifugal Pump

  • Up to 1500M³H
  • Max. Head 130M
  • Max. Temp 130°C
  • DN50 - 250 Outlet
Azcue CM VP/EP Self Priming Vertical Inline Centrifugal Pump

Azcue CM VP/EP Self Priming Vertical Inline Centrifugal Pump

  • Up to 1500M³H
  • Max. Head 130M
  • Max. Temp 130°C
  • DN50 - 250 Outlet
Azcue CM VP/EP ATEX Self Priming Vertical Inline Centrifugal Pump

Azcue CM VP/EP ATEX Self Priming Vertical Inline Centrifugal Pump

  • Up to 1500M³H
  • Max. Head 130M
  • Max. Temp 130°C
  • DN50 - 250 Outlet
Azcue LD Vertical Inline Double Suction Centrifugal Pump

Azcue LD Vertical Inline Double Suction Centrifugal Pump

  • Up to 6000M³H
  • Max. Head 60M
  • Max. Temp 130°C
  • DN300 - 400 Outlet
Azcue LD VP/EP Self Priming Double Suction Centrifugal Pump

Azcue LD VP/EP Self Priming Double Suction Centrifugal Pump

  • Up to 6000M³H
  • Max. Head 60M
  • Max. Temp 130°C
  • DN300 - 400 Outlet

14 Results
