Screw Pumps Page 1

Triple screw pumps for fuels & oils

Screw pumps, part of the positive displacement pump family, are most commonly utilised for the transfer of fluids with lubricating properties such as fuel, oils and lube oil. The screw pump is a versatile pump as it is able to handle fluctuating flow rates and pressures without losing efficiency. Included in our range are both twin screw pumps and triple screw pumps. Whilst gear pumps are suitable for many similar applications, screw pumps have many advantages over this design. Read our comparison guide here.

View more information about Screw Pumps

Popular applications in which screw pumps are commonly utilised include:

Fuel transfer
Oil burners/boilers
Hydraulic driving
Lubrication
Boosting
Fuel oil separating

Screw pumps also benefit from a smooth, low pulsation method of pumping. This prevents foam from occurring that some pumps create when pumping fluids of high viscosity. The installation of this type of positive displacement pump is also very flexible in that it can be mounted in both vertical and horizontal positions.

The triple screw pump design means that it has a controllable flow rate and is therefore ideal when a variable flow is required. Essentially, by doubling the size of screw pumps or the size of their motors, you are able to double the rate at which they pump the fluid.

Sort by:

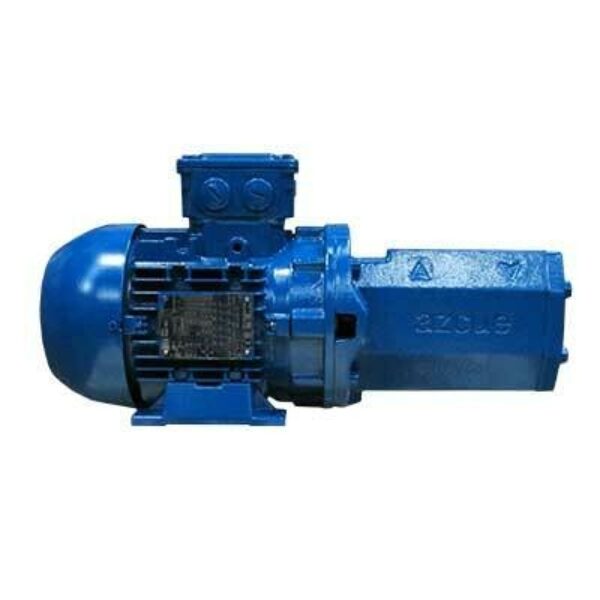

Azcue BT-MB Close Coupled Triple Screw Pump

Azcue BT-MB Close Coupled Triple Screw Pump

  • Up to 10M³H
  • Max. Head 50M
  • Max. Temp 100°C
  • DN 1” - 1.5” Outlet

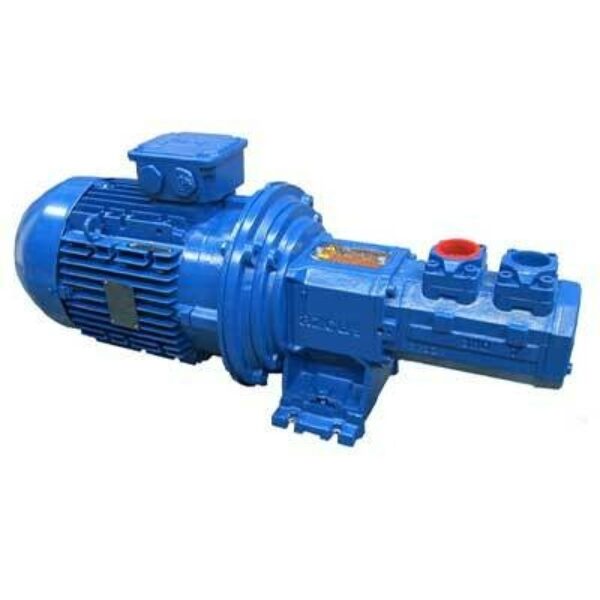

Azcue BT-HM Spacer Coupled Triple Screw Pump

Azcue BT-HM Spacer Coupled Triple Screw Pump

  • Up to 10M³H
  • Max. Head 16 bar
  • Max. Temp 160°C
  • DN 1” - 1.5” Outlet
Azcue BT-IL Spacer Coupled Triple Screw Pump

Azcue BT-IL Spacer Coupled Triple Screw Pump

  • Up to 35M³H
  • Max. Head 16 bar
  • Max. Temp 160°C
  • DN50 - DN100 Outlet

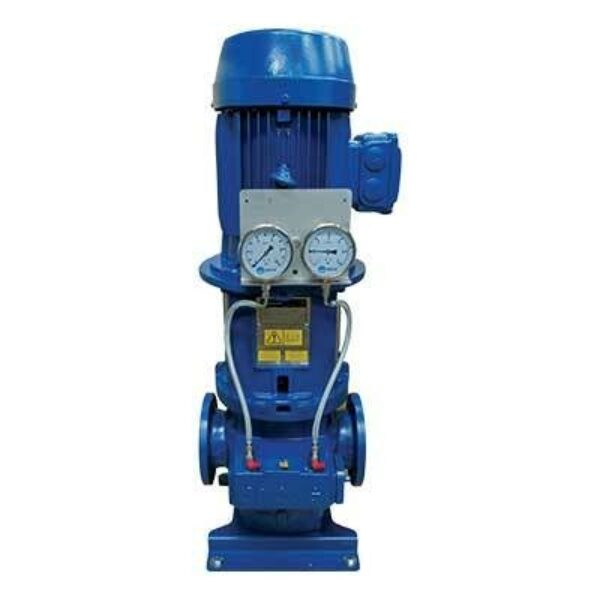

Azcue BT-LH Long Coupled Triple Screw Pump

Azcue BT-LH Long Coupled Triple Screw Pump

  • Up to 190M³H
  • Max. Head 12 bar
  • Max. Temp 160°C
  • DN125 - DN150 Outlet
Azcue BT-HH Long Coupled Triple Screw Pump

Azcue BT-HH Long Coupled Triple Screw Pump

  • ​Up to 30M³H
  • Max. Head 500M
  • Max. Temp 100°C
  • DN25 - DN65 mm Outlet
Azcue BT-LV Long Coupled Triple Screw Pump

Azcue BT-LV Long Coupled Triple Screw Pump

  • ​Up to 190M³H
  • Max. Head 12 bar
  • Max. Temp 160°C
  • DN125 - DN150 Outlet
Azcue BT-DF/DG Long Coupled Triple Screw Pump

Azcue BT-DF/DG Long Coupled Triple Screw Pump

  • Up to 450M³H
  • Max. Head 12 bar
  • Max. Temp 100°C
  • DN200 - DN250 Outlet

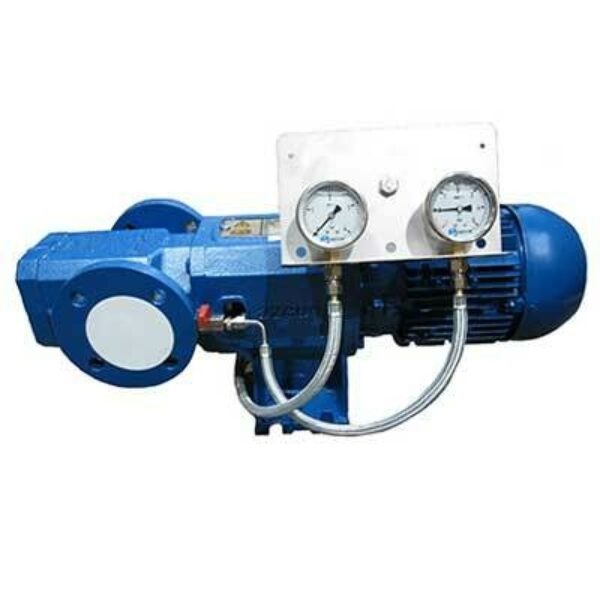

Azcue BT-HM-MG Spacer Coupled Triple Screw Pump

Azcue BT-HM-MG Spacer Coupled Triple Screw Pump

  • Up to 10M³H
  • Max. Head 16 bar
  • Max. Temp 160°C
  • DN 1” - 1.5” Outlet
Azcue BT-IL-MG Spacer Coupled Triple Screw Pump

Azcue BT-IL-MG Spacer Coupled Triple Screw Pump

  • Up to 35M³H
  • Max. Head 16 bar
  • Max. Temp 160°C
  • DN50 to 100 Outlet
Azcue BT-LH-MG Long Coupled Triple Screw Pump

Azcue BT-LH-MG Long Coupled Triple Screw Pump

  • Up to 190M³H
  • Max. Head 12 bar
  • Max. Temp 160°C
  • DN125 - 150 Outlet
Azcue BT-LV-MG Long Coupled Triple Screw Pump

Azcue BT-LV-MG Long Coupled Triple Screw Pump

  • Up to 450M³H
  • Max. Head 12 bar
  • Max. Temp 160°C
  • DN125 - 250 Outlet
Azcue BT-LS-H Low Sulphur Long Coupled Triple Screw Pump

Azcue BT-LS-H Low Sulphur Long Coupled Triple Screw Pump

  • Up to 190M³H
  • Max. Head 16 bar
  • Max. Temp 160°C
  • DN25 - 150 Outlet

14 Results



If you are unable to find the product that you are looking for then please contact us via sales@castlepumps.com or +44 (0) 1773 533 283
