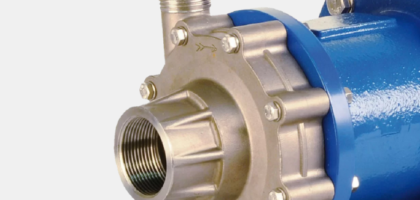

Magnetic Drive Pumps Page 1

Magnetically coupled pumps for leak-free pumping

Magnetic drive pumps, or magnetically coupled pumps as they are otherwise known, are a type of pump that differ slightly in its operation to the standard  design. Rather than a direct mechanical shaft, the motor is coupled to the pump by a magnet. This design eliminates the chance of leakages, and a mag drive pump is therefore ideal for applications where leaked fluid provides a hazard to the workforce or surrounding environment.

View more information about Magnetic Drive Pumps

Magnetic drive pumps, or magnetically coupled pumps as they are otherwise known, are a type of pump that differ slightly in its operation to the standard  design. Rather than a direct mechanical shaft, the motor is coupled to the pump by a magnet. This design eliminates the chance of leakages, and a mag drive pump is therefore ideal for applications where leaked fluid provides a hazard to the workforce or surrounding environment.

Common applications in which a magnetic drive pump may be required include:

Aggressive chemicals
Nuclear plants
Acids and solvents
Where leaked fluid may cause electric shocks

Whilst suitable for aggressive liquids, fluids containing particles can be problematic for mag drive pumps as they can stick to the magnet. Due to the lack of seals in magnetically coupled pumps they are generally low maintenance, and less expensive to maintain. The magnetic coupling also offers some protection against dry running meaning the coupling will slip at times where the pump is ran dry.

Refine your results by:

Update Results

Pump Type

Application

Manufacturer

Max. Flow Rate

Pressure

Max Temperature

Max Viscosity

Solids Size

Drive

Priming

Orientation

Material

Update Results




15 Results

Sort by:

Gemmecotti HPP/HPF Rotary Vane Magnetic Drive Pump

Gemmecotti HPP/HPF Rotary Vane Magnetic Drive Pump

  • ​Up to 1M³H
  • Max. Head 5 bar
  • Max. Temp 90°C
  • 3/8” - 1/2” Outlet

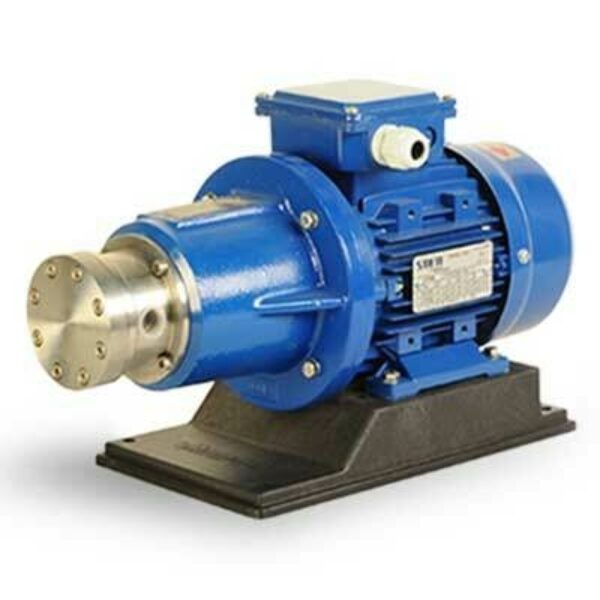

Gemmecotti HTP Self Priming Vane Magnetic Drive Pump

Gemmecotti HTP Self Priming Vane Magnetic Drive Pump

  • Up to 2M³H
  • Max. Head 13 bar
  • Max. Temp 250°C
  • 3/8” - 1” Outlet
  • Max. Viscosity 2000 cPs

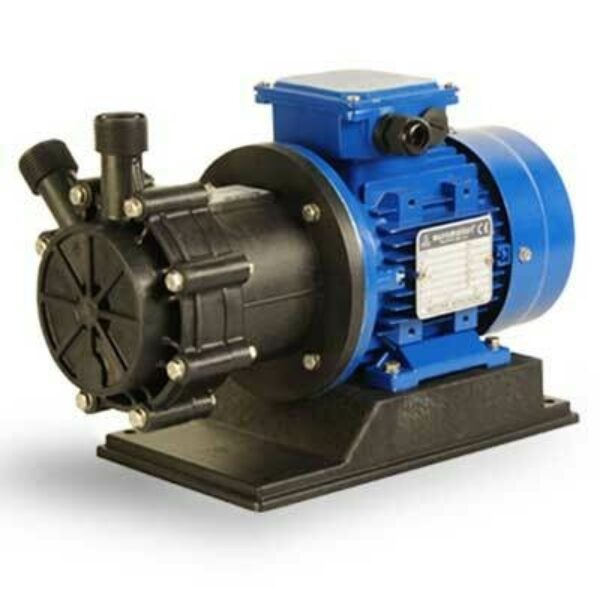

Gemmecotti HTT-SP Regenerative Turbine Magnetic Drive Pump

Gemmecotti HTT-SP Regenerative Turbine Magnetic Drive Pump

  • Up to 6M³H
  • Max. Head 28M
  • Max. Temp 90°C
  • 1” Outlet
Gemmecotti HTA Regenerative Turbine Magnetic Drive Pump

Gemmecotti HTA Regenerative Turbine Magnetic Drive Pump

  • ​Up to 7M³H
  • Max. Head 75M
  • Max. Temp 160°C
  • 3/4” - 1” Outlet
Gemmecotti HTT Regenerative Turbine Magnetic Drive Pump

Gemmecotti HTT Regenerative Turbine Magnetic Drive Pump

  • Up to 8M³H
  • Max. Head 36M
  • Max. Temp 90°C
  • 1” - 1 1/2” Outlet
Gemmecotti H-IBC Portable Centrifugal Magnetic Drive Pump

Gemmecotti H-IBC Portable Centrifugal Magnetic Drive Pump

  • Up to 13M³H
  • Max. Head 14M
  • Max. Temp 90°C
  • Max. Viscosity 200 cSt
Gemmecotti HTM Metallic Centrifugal Magnetic Drive Pump

Gemmecotti HTM Metallic Centrifugal Magnetic Drive Pump

  • ​Up to 32M³H
  • Max. Head 24M
  • Max. Temp 160°C
  • 3/4” - 2 ½” Outlet
  • Max. Viscosity 200 cSt
Gemmecotti HTM Centrifugal Magnetic Drive Pump

Gemmecotti HTM Centrifugal Magnetic Drive Pump

  • ​Up to 50M³H
  • Max. Head 32M
  • Max. Temp 90°C
  • 3/4” - 2 ½” Outlet
  • Max. Viscosity 200 cSt

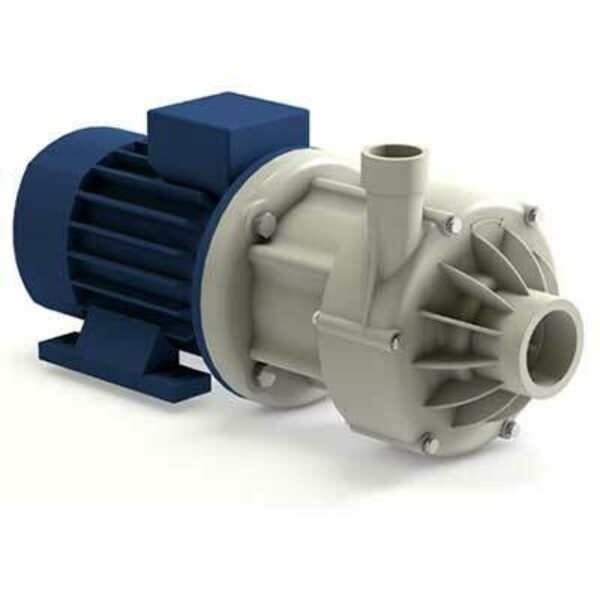

Gemmecotti HCM Centrifugal Magnetic Drive Pump

Gemmecotti HCM Centrifugal Magnetic Drive Pump

  • ​Up to 130M³H
  • Max. Head 48M
  • Max. Temp 90°C
  • 1” - 4” Outlet
Debem DM Centrifugal Magnetic Drive Pump

Debem DM Centrifugal Magnetic Drive Pump

  • Up to 35 M³H
  • Max. Head 25M
  • Max. Temp 95°C
  • 1”-2” Outlet

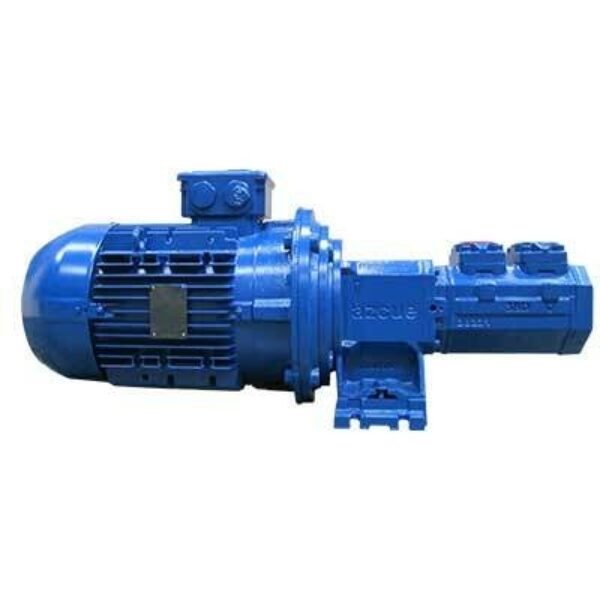

  • Azcue BT-HM-MG Spacer Coupled Triple Screw Pump

    Azcue BT-HM-MG Spacer Coupled Triple Screw Pump

    • Up to 10M³H
    • Max. Head 16 bar
    • Max. Temp 160°C
    • DN 1” - 1.5” Outlet
    Azcue BT-IL-MG Spacer Coupled Triple Screw Pump

    Azcue BT-IL-MG Spacer Coupled Triple Screw Pump

    • Up to 35M³H
    • Max. Head 16 bar
    • Max. Temp 160°C
    • DN50 to 100 Outlet

    15 Results



    If you are unable to find the product that you are looking for then please contact us via sales@castlepumps.com or +44 (0) 1773 533 283
