Azcue BS-S Horizontal Piston Pump

Bilge Pump & Sea Water Pump

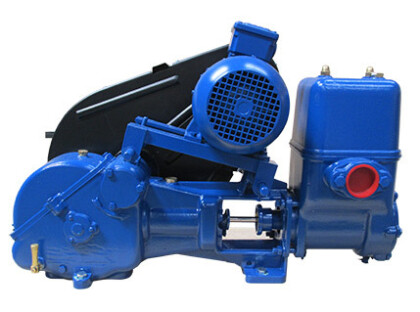

Azcue BS-S Horizontal Piston Pump
Flow Rate 45M³H
Max Head (pressure) 100M
Max Temperature 80°C
Outlet Sizes 1” – 3”

Flow Rate 45M³H
Max Head (pressure) 100M
Max Temperature 80°C
Outlet Sizes 1” – 3”

The Azcue BS-S Horizontal Piston Pump is a high pressure pumping solution complete with electric motor and v-belt pulley with guard, meeting safety regulations. This Azcue pump is designed for the high pressure pumping of water and other compatible relatively clean fluids, making it popular for water supply and pressure boosting.

Requiring less than 0.25kw to pump 1m³ of water, the Azcue BS high pressure piston pump is a low energy solution saving energy consumption and costs, and ultimately resulting in a low pay back period.

Features of the BS-S Series Piston Pump:

  • High pressure piston pump
  • Electric motor with v-belt pulley
  • Completely enclosed v-belt guard for safety
  • Horizontal orientation
  • Suction and discharge are interchangeable for flexibility
  • Low energy consumption – requires less than 0.25kw per 1m³ of water
  • Diaphragm safety valve (type tested)
  • Poppet valve
  • 230v, three phase 50Hz motors available. IP55 as standard.


Material options for the Azcue BS high pressure plunger:

GG20Steel, Drop ForgedPrecision GroundStainlessBrassSimrit
Crank ShaftX
Piston RodX
Cylinder LinerXX
Dual PistonX
Marine Applications:Industrial Applications:
  • Bilge water pump
  • Boiler feed
  • High pressure general sea water service
  • Fire fighting
  • General water transfer, supply and service
  • Water pressure boosting pump
  • Boiler feed water pump
  • Irrigation
