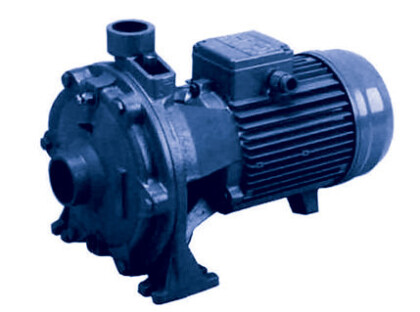

Azcue 2CP Close Coupled Centrifugal Pump

Centrifugal Water Pump

Azcue 2CP Close Coupled Centrifugal Pump
Flow Rate Up to 12M³H
Max Head (Pressure) Up to 66M
Inlet / Outlet Sizes 1” – 1 ¼”
Max Liquid Temp 80°C


Flow Rate Up to 12M³H
Max Head (Pressure) Up to 66M
Inlet / Outlet Sizes 1” – 1 ¼”
Max Liquid Temp 80°C

The Azcue 2CP Monobloc Pump is a twin impeller, close coupled centrifugal pump primarily used within industrial, marine, agricultural and domestic applications. The 2CP range of monobloc horizontal centrifugal pumps are designed for handling clean water with no abrasive solids or particles in cooling systems and pressure sets. This Azcue centrifugal water pump features two opposed brass impellers and balanced axial thrust and can pump water with a temperature of up to 80°C.

Features of the 2CP Single Stage Centrifugal Pump:

  • Monoblock horizontal centrifugal pump
  • 1 – 3 phase 50 / 60Hz IEC motors
  • TEFC motors as standard.
  • Single phase pumps include a built in thermal protector.
  • Lloyds / ABS approved.
  • Assembly without alignment.
  • Interchangeable spares across the range.

Key Benefits:





  • 2CPm130/130
  • 2CPm140/140
  • 2CPm160/160
  • 2CP130/130
  • 2CP140/140
  • 2CP160/160
  • 2CP25/160A

Material options for the Azcue 2CP Close Coupled Centrifugal Pump:

Cast IronBrassStainless Steel
Pump Body

X

ImpellerX
Stainless SteelX
