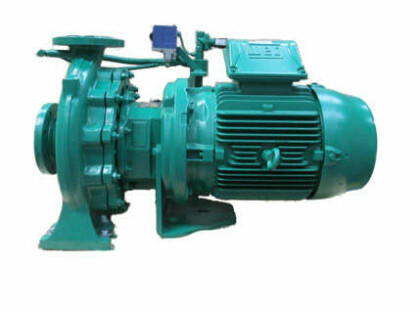

Azcue MN VP/EP Close Coupled Self Priming Centrifugal Pump

Irrigation Pump & Sea Water Cooling Pump

Azcue MN VP/EP Close Coupled Self Priming Centrifugal PumpAzcue MN VP/EP Close Coupled Self Priming Centrifugal Pump
Flow Rate Up to 500M³H
Max Head (pressure) Up to 100M
Outlet Sizes DN32-150
Max Temperature 120°C


Flow Rate Up to 500M³H
Max Head (pressure) Up to 100M
Outlet Sizes DN32-150
Max Temperature 120°C

The Azcue MN VP/EP Centrifugal Self Priming Pumps is essentially the MN close coupled centrifugal pump complete with either a vacuum or electric priming pump for applications that involve more difficult suction conditions. For longer suction distances, a vacuum priming pump would be the better solution thanks to its ability to dry run for short periods of time.

The MN is a robust horizontal centrifugal pump with good flow and pressure capabilities, popular for the transfer of relatively clean fluids such as water and thin fuels. Based on DIN 24255, this model is dimensionally the same as other pumps allowing it to easily replace existing single stage centrifugal pumps from other manufacturers

The Azcue MN self priming centrifugal pump benefits from a back pull out design, allowing the motor to be removed without disconnecting the pump from the pipework, saving time during maintenance. Whilst being closed coupled, this centrifugal water pump has a lantern bracket, which means that whilst being of more compact construction, there is still space between the pump and motor so should the seal fail fluid will not enter the motor.

With separate shafts in the pump head and motor, these Azcue pumps have the benefit that if there is ever an issue with one shaft, there is no need to replace it all, unlike alternatives that have one continuous shaft from head to motor. This model also has wear rings, which means there is small clearance between the impeller and pump casing stopping these parts from wear. Wearing rings are designed to be replaced periodically, preventing the more costly replacement of the impeller or casing.

Features of the MN Single Stage Centrifugal Pump:

  • Close coupled, single stage centrifugal pump
  • Comes with either vacuum or electric self priming pump
  • DIN 24255 dimensions for easy retrofitting
  • Pump manufactured in Spain
  • Marine type approved by all classification societies
  • Compact horizontal design ideal for space saving installations
  • Available in cast iron, 316 stainless steel and bronze for seawater
  • Lantern bracket providing some space between pump head and motor
  • Back pull out design for simple maintenance
  • Separate shafts in the pump and motor
  • Low NPSH
  • Casing wear rings to prolong casing and impeller life
  • 230v, three phase 50Hz/60Hz motors available. IP55 as standard.
  • Assembly without alignment
  • Supplied flanged as standard




The Azcue SP-MN Close Coupled Centrifugal Self Priming Pump is available with the following material options:

CAST IRON
GG25
RONZE
G-Cusn5ZnPb (Rg5)
BRONZE
G-CusN10
BRONZE
G-CUA110Ni
BRONZE
G-CuSN10Zn (Rg10)
BRONZE
G-CuSn10Pb10
STAINLESS STEEL AISI 316
X5CrNiMO 18 10
VOLUTEXXXXXX
IMPELLERXXXXXX
SHAFTX
WEAR RINGSXXX
Seawater Transfer for Crab Vessel - Close Coupled Centrifugal Pumps

Seawater Transfer for Crab Vessel - Close Coupled Centrifugal Pumps

Castle Pumps understand that the selection process of a pump is the most important part of the buying procedure, so ensuring that we gather the correct information is vital. This information ensures that the customer will get a pump that works, and a pump that's efficient in saving money in both power and spares over it's lifetime. By collecting the necessary information we were able to spec and source the best pump for this customer's needs.

Seawater Cooling for Refrigeration Engineers - Self Priming Centrifugal Pumps

Seawater Cooling for Refrigeration Engineers - Self Priming Centrifugal Pumps

Castle Pumps' range is so vast that it includes pumps that other distributors do not have access to. For example, in this case study the client had approached other suppliers who were unable to fulfil their requirement of a self priming centrifugal pump able to handle flow rates of up to 8,300 l/min. Castle Pumps however were able to find the customer a solution.

The MN Close Coupled Centrifugal Pump is manufactured by Azcue Pumps. As the official UK Agent of Azcue Pumps, Castle Pumps are a leading Bombas Azcue supplier in the UK with unrivalled technical knowledge. Azcue Pumps are a European manufacturer with over 100 years’ experience in type approved pumps for marine and offshore applications. Today their pumps are installed in more than 10,000 vessel builds. Whilst originally developed for the marine market, Azcue Pumps’ reliability in applications that depend upon the safety and operation of a ship saw them become a desirable product in industrial applications involving water, fuels and lubricants.

One of the key benefits of the MN single stage centrifugal pump like the other models in the Azcue range, is that is benefits from interchangeable parts for reduced on board stockholding. We guarantee supply of spares for 15 years from model discontinuation for long term pump servicing., saving the user from having to prematurely replace a pump that just needs maintenance.

Azcue MN self priming centrifugal pump are cast, machined and assembled at their foundry in Spain. Each pump is manufactured to order and designed to fit your process, resulting in greater efficiency and lower overall lifetime cost in terms of wear and energy consumption. Before leaving the factory, pumps are individually tested to confirm performance meets the requirements set out in your enquiry.

Single stage centrifugal pumps are the most common pump type for the transfer of low viscosity fluids in high flow rate and relatively low-pressure installations. The centrifugal pump design is often associated with the transfer of water, but is also a popular solution for handling thin fuels and chemicals. This makes the Azcue MN close coupled centrifugal pump suited to applications including:

Marine Applications:Industrial Applications:
  • Sea water cooling pump
  • General sea water service
  • Grey water with low solid content
  • Aquaculture recirculation systems
  • Ballast water pumping systems
  • Boat deck washing
  • Low viscosity fuel and lubrication transfer
  • Boiler feed water pump
  • Closed loop HVAC circulating and cooling pumps
  • General water transfer, supply and service
  • Waste water with low solid content
  • Water pressure boosting pump
  • Swimming pool recirculation systems
  • Agriculture and lawn irrigation
  • Low viscosity fuel and lubrication transfer
  • Boiler feed water pump

Related Products

Related Products

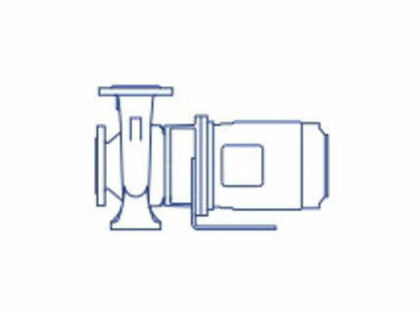

  • Azcue MN Close Coupled Centrifugal Pump
