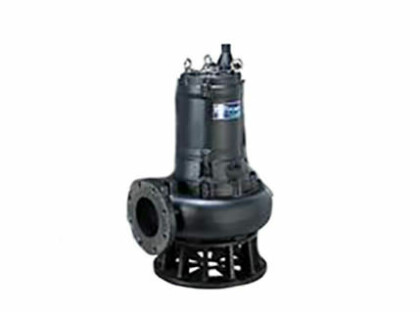

HCP AF Series Submersible Pump

Waste Water & Sewage pump

HCP AF Series Submersible Pump
Flow Rate Up to 1860M³H
Max Head (Pressure) Up to 40M
Outlet Sizes 50-400mm
Max Temperature 40°c
Free Passage 120 mm Max
Enquire about
this product

OR

Add to my enquiry list
Performance Curve 50HZ Performance Curve 60HZ


Flow Rate Up to 1860M³H
Max Head (Pressure) Up to 40M
Outlet Sizes 50-400mm
Max Temperature 40°c
Free Passage 120 mm Max
Performance Curve 50HZ Performance Curve 60HZ
Enquire about this product

OR

Add to my enquiry list

The HCP AF Series submersible pump is a heavy duty sump pump for the drainage of waste water and sewage. Popular applications include transferring sewage from tanks in water treatment plants, accumulated water, sceptic tanks, farm, pumping sewage from buildings and surface water irrigation. The AF Series submersible water pump can be customised to fit specifications and allows for free passage of solids up to 120mm. The AF Series is available with motors up to 37Kw and can achieve a flow rate of up to 1860m³/hr. This sewage pump range is available with or without a float switch.

  • For waste water, drainage water and sewage water
  • Equipped with auto-cut, dry-motor, silicon carbide mechanical seal
  • Multiple impeller designs to handle sewage and/or fibrous substances
  • Available with or without a float switch
  • Free passage of solids of up to 120mm
  • Available to be customised
  • 230v and three phase 50hz / 60hz motors available
  • Impeller types include single vane, twin vane, semi-open and closed impeller
  • 50AFU2.4 - 0.4Kw, 1-3 phase, 50-60Hz motor. 50mm outlet, 10M max Head, 19.2m³h. 35mm free passage.
  • 50AFU2.4L - 0.4Kw, 1-3 phase, 50-60Hz motor. 50mm outlet, 7M max Head, 22.8m³h. 50mm free passage.
  • 50AFU2.8 - 0.75Kw, 1-3 phase, 50-60Hz motor. 50mm outlet, 12.5M max Head, 24m³h. 35mm free passage.
  • 50AFU2.8L - 0.7Kw, 1-3 phase, 50-60Hz motor. 50mm outlet, 10M max Head, 25.2m³h. 50mm free passage.
  • 80AFU21.5 - 1.5Kw, 1-3 phase, 50-60Hz motor. 80mm outlet, 15M max Head, 45m³h. 50mm free passage.
  • 80AFU21.5L - 1.5Kw, 1-3 phase, 50-60Hz motor. 80mm outlet, 8M max Head, 51m³h. 76mm free passage.
  • 80AFU22.2 - 2.2Kw, 1-3 phase, 50-60Hz motor. 80mm outlet, 18M max Head, 54m³h. 50mm free passage.
  • 80AFU22.2L - 2.2Kw, 1-3 phase, 50-60Hz motor. 80mm outlet, 11M max Head, 57m³h. 76mm free passage.
  • 80AFU23.7 - 3.7Kw, 3 phase, 50-60Hz motor. 80mm outlet, 22M max Head, 72m³h. 56mm free passage.
  • 80AFP21.5 - 1.5Kw, 1-3 phase, 50-60Hz motor. 80mm outlet, 15M max Head, 66m³h. 38mm free passage.
  • 80AFP22.2 - 2.2Kw, 1-3 phase, 50-60Hz motor. 80mm outlet, 19M max Head, 72m³h. 35mm free passage.
  • 50AFU4.4 - 0.4Kw, 1-3 phase, 50-60Hz motor. 50mm outlet, 5.5M max Head, 24m³h. 50mm free passage.
  • 50AFU4.8 - 0.7Kw, 1-3 phase, 50-60Hz motor. 50mm outlet, 7.5M max Head, 30m³h. 50mm free passage.
  • 80AFU41.5 -1.5Kw, 1-3 phase, 50-60Hz motor. 80mm outlet, 8M max Head, 66m³h. 76mm free passage.
  • 80AFU42.2 - 2.2Kw, 3 phase, 50-60Hz motor. 80mm outlet, 10M max Head, 72m³h. 76mm free passage.
  • 80AFU43.7 - 3.7Kw, 3 phase, 50-60Hz motor. 80mm outlet, 13M max Head, 90m³h. 76mm free passage.
  • 80AFP41.5 - 1.5Kw, 1-3 phase, 50-60Hz motor. 80mm outlet, 13.5M max Head, 66m³h. 50mm free passage.
  • 80AFP42.2 - 2.2Kw, 3 phase, 50-60Hz motor. 80mm outlet, 16.5M max Head, 72m³h. 50mm free passage.
  • 80AFP43.7 - 3.7Kw, 3 phase, 50-60Hz motor. 80mm outlet, 17.5M max Head, 96m³h. 50mm free passage.
  • 100AFP43.7 - 3.7Kw, 3 phase, 50-60Hz motor. 100mm outlet, 17.5M max Head, 120m³h. 50mm free passage.
  • AF-55AU - 5.5Kw, 3 phase, 50-60Hz motor. 100mm outlet, 14M max Head, 138m³h. 25mm free passage.
  • AF-55AE - 5.5Kw, 3 phase, 50-60Hz motor. 100mm outlet, 24M max Head, 132m³h. 40mm free passage.
  • AF-75U - 7.5Kw, 3 phase, 60Hz motor. 100mm outlet, 18.5M max Head, 150m³h. 25mm free passage.
  • AF-75E - 7.5Kw, 3 phase, 50-60Hz motor. 100mm outlet, 28.5M max Head, 144m³h. 40mm free passage.
  • AF-415 - 11Kw, 3 phase, 50-60Hz motor. 100mm outlet, 33.5M max Head, 156m³h. 40mm free passage.
  • AF-610 - 7.5Kw, 3 phase, 50-60Hz motor. 150mm outlet, 21M max Head, 300m³h. 70mm free passage.
  • AF-615 - 11Kw, 3 phase, 50-60Hz motor. 150mm outlet, 25M max Head, 360m³h. 70mm free passage.
  • AF-620 - 15Kw, 3 phase, 50-60Hz motor. 150mm outlet, 34M max Head, 330m³h. 76mm free passage.
  • AF-630 - 22Kw, 3 phase, 50-60Hz motor. 150mm outlet, 40M max Head, 360m³h. 76mm free passage.
  • AF-815 - 11Kw, 3 phase, 50-60Hz motor. 200mm outlet, 17.5M max Head, 570m³h. 75mm free passage.
  • AF-820 - 15Kw, 3 phase, 50-60Hz motor. 200mm outlet, 24M max Head, 570m³h. 75mm free passage.
  • AF-830 - 22Kw, 3 phase, 50-60Hz motor. 200mm outlet, 34M max Head, 420m³h. 76mm free passage.
  • AF-1030S - 22Kw, 3 phase, 50-60Hz motor. 250mm outlet, 30M max Head, 720m³h. 60mm free passage.
  • AF-1040 - 30Kw, 3 phase, 50-60Hz motor. 250mm outlet, 32M max Head, 750m³h. 60mm free passage.
  • AF-1050 - 37Kw, 3 phase, 50-60Hz motor. 250mm outlet, 37M max Head, 780m³h. 60mm free passage.
  • AF-1060 - 45Kw, 3 phase, 60Hz motor. 250mm outlet, 38M max Head, 870m³h. 60mm free passage.
  • AF-1430 - 22Kw, 3 phase, 50-60Hz motor. 350mm outlet, 14M max Head, 1440m³h. 120mm free passage.
  • AF-1440 - 30Kw, 3 phase, 50-60Hz motor. 350mm outlet, 15M max Head, 1620m³h. 120mm free passage.
  • AF-1650 - 37Kw, 3 phase, 50-60Hz motor. 400mm outlet, 16.5M max Head, 1740m³h. 120mm free passage.
  • AF-1660 - 45Kw, 3 phase, 50-60Hz motor. 400mm outlet, 18M max Head, 1860m³h. 120mm free passage.
CAST IRONSTAINLESS STEEL AISI
316 X5CrNiMO 18 10
CASINGX
IMPELLERX
SHAFTX
