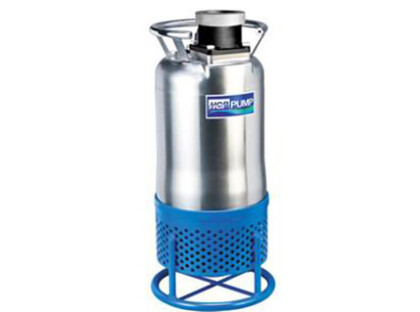

HCP AG Series Submersible Pump

Sludge & Dewatering Pump

HCP AG Series Submersible Pump
Flow Rate Up to 120M³H
Max Head (Pressure) Up to 30M
Outlet Sizes 80-150mm
Max Temperature 40°c
Free Passage 10mm


Flow Rate Up to 120M³H
Max Head (Pressure) Up to 30M
Outlet Sizes 80-150mm
Max Temperature 40°c
Free Passage 10mm

The HCP AG Series Submersible Pump is commonly used for dewatering for tunnel engineering, dirty water, slurry and drainage water. This submersible water pump is suitable for use in civil engineering and mobile use for contractors and installers. A float switch is an optional feature of this sump pump, and it has the ability to cope with solids up to 10 mm. The AG Series dewatering pump is available in a number of different motor size models that range up to 7.5Kw and has a maximum flow rate of 120m³/hr.

  • For dewatering, dirty water, slurry and drainage water
  • Equipped with cast iron agitator
  • Handles solids up to 10mm
  • Available with or without a float switch
  • Equipped with double mechanical seal made of silicon carbide. Durable and leak proof
  • Compact and robust design
  • 230v and three phase 50Hz / 60Hz motors available

  • 80AGN21.5 - 80mm Outlet, 9M max head, 30 m³h, 10mm free passage. 1.5Kw, 50-60Hz, 1/3 phase motor.
  • 80AGN22.2 - 80mm Outlet, 13M max head, 30 m³h, 10mm free passage. 2.2Kw, 50-60Hz, 1/3 phase motor.
  • 80AGN23.7 - 80mm Outlet, 21M max head, 30 m³h, 10mm free passage. 3.7Kw, 50-60Hz, 3 phase motor.
  • 80AGH.25.5 - 80mm Outlet, 27M max head, 30 m³h, 10mm free passage. 5.5Kw, 50-60Hz, 3 phase motor.
  • 100AGN25.5 - 100mm Outlet, 18M max head, 60 m³h, 10mm free passage. 5.5Kw, 50-60Hz, 3 phase motor.
  • 100AGN27.5 - 100mm Outlet, 24M max head, 60 m³h, 10mm free passage. 7.5Kw, 50-60Hz, 3 phase motor.
  • 150AGL25.5 - 150mm Outlet, 11M max head, 90 m³h, 10mm free passage. 5.5Kw, 50Hz, 3 phase motor.
  • 150AGL27.5 -150mm Outlet, 16M max head, 90 m³h, 10mm free passage. 7.5Kw, 50-60Hz, 3 phase motor.
HIGH CHROME ALLOYCAST IRONSTAINLESS STEEL AISI 316
X5CrNIMO 18 10
CASINGX
IMPELLERX
SHAFTX
