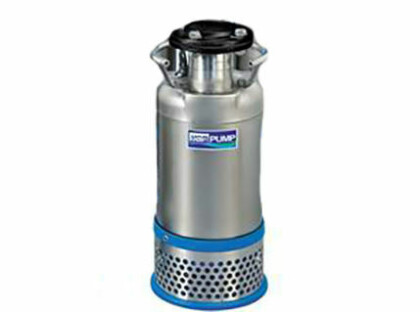

HCP AS Series Submersible Pump

Dewatering Pump

HCP AS Series Submersible Pump
Flow Rate Up to 120M³H
Max Head (Pressure) Up to 40M
Outlet Sizes 50-150mm
Max Temperature 40°c
Free Passage 10 mm Max
Enquire about
this product

OR

Add to my enquiry list
Performance Curve 50HZ Performance Curve 60HZ


Flow Rate Up to 120M³H
Max Head (Pressure) Up to 40M
Outlet Sizes 50-150mm
Max Temperature 40°c
Free Passage 10 mm Max
Performance Curve 50HZ Performance Curve 60HZ
Enquire about this product

OR

Add to my enquiry list

The HCP AS Series submersible pumps are used primarily for the dewatering of tunnel and ground works, storm water sewers, mines, quarries, construction sites, dewatering fluids containing solid elements and used in civil engineering, service industries, contractors and installers. The dewatering pump is available with or without a float switch and allows for free passage of solids up to 10 mm. The AS Series sump pump is available with motors up to 7.5Kw and can achieve a flow rate up to 120m³/hr.

  • Dewatering and dewatering fluids containing solid elements.
  • Free passage of solids up to 10 mm.
  • Available with or without a float switch.
  • Multi impeller design for high head applications
  • Semi Open, Open and closed impeller available
  • Light weight and compact design
  • Hose, threaded and flanged outlet options
  • Comes with a high chrome alloy with a steel hardness of 55-60 HRC.
  • 1 and 3 phase 50Hz / 60Hz motors available.
  • AS-215 – 1.1Kw, 50-60Hz, 1-3 phase motor. 50mm outlet, 13.5M max head, 12m³h max flow, 7.5mm free passage.
  • 50ASH21.5 - 1.5Kw, 50-60Hz, 1-3 phase motor. 50mm outlet, 15M max head, 15m³h max flow, 10mm free passage.
  • 50ASH22.2 – 2.2Kw, 50-60Hz, 1-3 phase motor. 50mm outlet, 19M max head, 18m³h max flow, 10mm free passage.
  • 50ASH23.7 – 3.7Kw, 60Hz, 3 phase motor. 50mm outlet, 29.5M max head, 18m³h max flow, 10mm free passage.
  • 80ASN21.5 - 1.5Kw, 50-60Hz, 1-3 phase motor. 80mm outlet, 10M max head, 30m³h max flow, 10mm free passage.
  • 80ASN22.2 – 2.2Kw, 50-60Hz, 1-3 phase motor. 80mm outlet, 14M max head, 30m³h max flow, 10mm free passage.
  • 80ASN23.7 – 3.7Kw, 50-60Hz, 3 phase motor. 80mm outlet, 21.5M max head, 30m³h max flow, 10mm free passage.
  • 80ASH25.5 – 5.5Kw, 50-60Hz, 3 phase motor. 80mm outlet, 28M max head, 30m³h max flow, 10mm free passage.
  • 100ASL23.7 - 3.7Kw, 50-60Hz, 3 phase motor. 100mm outlet, 12.5M max head, 60m³h max flow, 10mm free passage.
  • 100ASN25.5 – 5.5Kw, 50-60Hz, 3 phase motor. 100mm outlet, 19M max head, 60m³h max flow, 10mm free passage.
  • 100ASN27.5 - 7.5Kw, 50-60Hz, 3 phase motor. 100mm outlet, 25M max head, 60m³h max flow, 10mm free passage.
  • 150ASL25.5 - 5.5Kw, 50Hz, 3 phase motor. 150mm outlet, 12M max head, 90m³h max flow, 10mm free passage.
  • 150ASL27.5 - 7.5Kw, 50-60Hz, 3 phase motor. 150mm outlet, 17M max head, 90m³h max flow, 10mm free passage.

The submersible dewatering pump is available in the following material options:

HIGH CHROMECAST IRONSTAINLESS STEEL AISI 316
X5CrNiMO 18 10
CASINGX
IMPELLERX
SHAFTX
