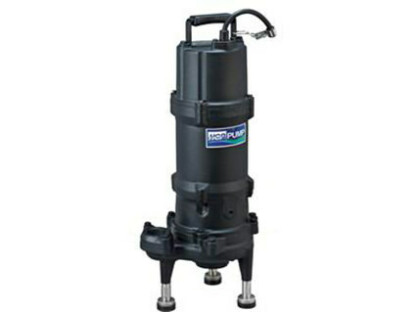

HCP GF Series Grinder Submersible Pump

Waste Water Pump

HCP GF Series Grinder Submersible Pump
Flow Rate Up to 18M³H
Max Head (pressure) Up to 35M
Outlet Sizes 32-50mm
Max Temperature 40°c
Free Passage Grinder


Flow Rate Up to 18M³H
Max Head (pressure) Up to 35M
Outlet Sizes 32-50mm
Max Temperature 40°c
Free Passage Grinder

The HCP Pumps GF Series Submersible pump is able to handle large solids thanks to its fitted vortex impeller and cutter ring to grind up and solids entering the pump. These sump pumps are used in pressure sewage systems, for the transfer of waste water in commercial buildings and for the drainage of waste water in residential properties. The submersible water pump range is available with or without a float switch depending upon the individual requirement. The GF Series wastewater pump is available with motors up to 3.7Kw and can achieve a flow rate up to 18m³/hr.

  • Waste water and drainage water
  • Vortex impeller and cutter ring (Grinder). Able to handle gloves, string, cloths, and socks.
  • Radial cutter ring in SUS440V hardened to 55-60 Rockwell standard
  • Available with or without a float switch
  • Accessories include: AC Thermal motor protectors, epoxy resin cable bases, double mechanical seals and double ball bearing support shaft motors
  • 230v and three phase 50Hz / 60Hz motors
  • 32GF21.0 – 1Kw, 50-60Hz, 32mm Outlet, 1/3 phase, 17M max head, 3.6m³h.
  • 32GF21.5 – 1.5Kw, 50-60Hz, 32mm Outlet, 1/3 phase, 23M max head, 3.6m³h.
  • 32GF21.5H - 1.5Kw, 50-60Hz, 32mm Outlet, 1/3 phase, 26M max head, 3.6m³h.
  • 32GF21.5DN40 - 1.5Kw, 50-60Hz, 32mm Outlet, 1/3 phase, 23M max head, 3.6m³h.
  • 32GF22.2 – 2.2Kw, 50-60Hz, 32mm Outlet, 1/3 phase, 29M max head, 3.6m³h.
  • 32GF22.2H – 2.2Kw, 60Hz, 32mm Outlet, 1/3 phase, 35M max head, 3.6m³h.
  • 32GF22.2DN40 - 2.2Kw, 50-60Hz, 32mm Outlet, 1/3 phase, 29M max head, 3.6m³h.
  • 50GF22.2 - 2.2Kw, 50-60Hz, 50mm Outlet, 3 phase, 19M max head, 12m³h.
  • 50GF23.7 – 3.7Kw, 50-60Hz, 50mm Outlet, 3 phase, 26M max head, 12m³h.
CAST IRONSTAINLESS STEEL AISI 316
X5CrNiMO 18 10
CASINGX
IMPELLERX
SHAFTX
