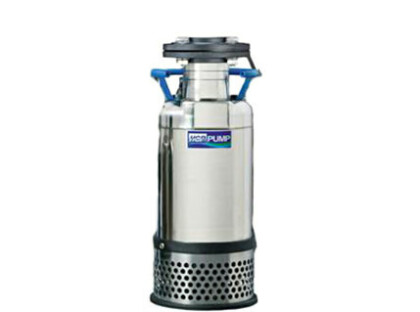

HCP IC Series Submersible Pump

Sludge & Dewatering Pump

HCP IC Series Submersible Pump
Flow Rate Up to 120M³H
Max Head (Pressure) Up to 38M
Outlet Sizes 50-150mm
Max Temperature 40°c
Free Passage 10mm
Enquire about
this product

OR

Add to my enquiry list
Performance Curve 50HZ Performance Curve 60HZ


Flow Rate Up to 120M³H
Max Head (Pressure) Up to 38M
Outlet Sizes 50-150mm
Max Temperature 40°c
Free Passage 10mm
Performance Curve 50HZ Performance Curve 60HZ
Enquire about this product

OR

Add to my enquiry list

The HCP IC Series Submersible Pump is designed for the extraction of water from reservoirs, rivers and lakes, underground water pumping and the supply of water for agricultural irrigation systems. The sump pump range can come with float switch if required and can handle the passage of solids a maximum of 10mm in size. The IC Series dewatering pump is available with motors up to 2.2Kw and can achieve flow rates up to 120m³/hr.

  • Extraction and supply of water
  • Internal casing is epoxy coated
  • Can be used above ground level and prime 8m or below water level
  • Can be equipped with a check valve for surface mounted applications
  • Free passage of solids up to 10mm
  • Available with or without a float switch
  • Chrome Iipeller has hardness rating of 25-30
  • Equipped with thermal Auto-Cut to prevent the motor from overheating. Abrasion resistant double mechanical seal and additional oil seal
  • 230v and three phase 50Hz / 60Hz motors.
  • IC-215 - 1.1Kw, 1-3 phase, 50-60Hz motor. 50mm outlet, 13.5M max Head, 12m³h. 3.5mm free passage.
  • IC-32B - 1.5Kw, 1-3 phase, 50-60Hz motor. 80mm outlet, 10M max Head, 30m³h. 10mm free passage.
  • IC-33B - 2.2Kw, 1-3 phase, 50-60Hz motor. 80mm outlet, 14M max Head, 30m³h. 10mm free passage.
  • IC-43B - 2.2Kw, 1-3 phase, 50-60Hz motor. 90/100mm outlet, 9.5M max Head, 48m³h. 10mm free passage.
  • IC-45B - 3.7Kw, 3 phase, 50-60Hz motor. 90/100mm outlet, 13M max Head, 60m³h. 10mm free passage.
  • IC-48 - 5.5Kw, 3 phase, 50-60Hz motor. 100mm outlet, 19M max Head, 60m³h. 10mm free passage.
  • IC-46B - 4.5Kw, 3 phase, 60Hz motor. 90/100mm outlet, 15.5M max Head, 60m³h. 10mm free passage.
  • IC-410 - 7.5Kw, 3 phase, 50-60Hz motor. 100mm outlet, 25M max Head, 60m³h. 10mm free passage.
  • IC-68 - 5.5Kw, 3 phase, 50Hz motor. 150mm outlet, 12M max Head, 90m³h. 10mm free passage.
  • IC-610 - 7.5Kw, 3 phase, 50-60Hz motor. 150mm outlet, 17M max Head, 90m³h. 10mm free passage.

The submersible water pump is available in the following material options:

BRONZE
G-CusN10		CAST IRON STAINLESS STEEL AISI 316
X5CrNiMO 18 10		CHROME STEEL
CASINGX
IMPELLERXX
SHAFTX
