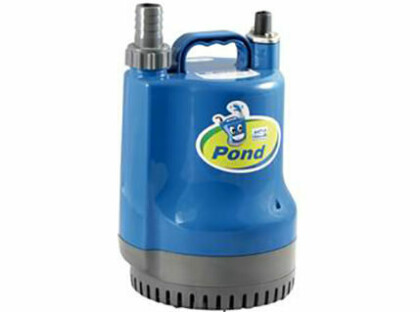

HCP Pond Series Submersible Pump

Water Circulating Pump

HCP Pond Series Submersible Pump
Flow Rate Up to 9M³H
Max Head (Pressure) Up to 10M
Outlet Sizes 15-40mm
Max Temperature 40°c
Free Passage 4mm


Flow Rate Up to 9M³H
Max Head (Pressure) Up to 10M
Outlet Sizes 15-40mm
Max Temperature 40°c
Free Passage 4mm

The HCP Pond Series Submersible Pumps are designed for use primarily in residential and commercial ponds, gardening, water supply and drainage, recycling of water, dewatering and tank water circulation. The Pond series sump pump range is available with or without a float switch and allows for free passage of solids up to 4mm. The Pond Series submersible water pump is available with motors up to 0.25Kw and can achieve flow rates up to 9m³/hr.

  • Dewatering and water circulation
  • Solid handling up to 4mm
  • Optional float switch available
  • Single phase 50Hz / 60Hz motors
  • Available with aluminium or stainless steel motor frame
  • POND-100 – 1.7HP/100W. 4.5M max head, 3m³h Max Flow.
  • POND-100AF - 1.7HP/100W, Automatic with float switch. 4.5M max head, 3m³h Max Flow.
  • POND-100AFV - 1.7HP/100W, Automatic with vertical float switch. 4.5M max head, 3m³h Max Flow.
  • POND-150 – 1.5HP/150W. 6.5M max head, 3.6m³h Max Flow.
  • POND-150AF - 1.5HP/150W, Automatic with float switch. 6.5M max head, 3.6m³h Max Flow.
  • POND-150AFV - 1.5HP/150W, Automatic with vertical float switch. 6.5M max head, 3.6m³h Max Flow.
  • POND-S250 - Stainless steel frame, 1.3HP, 250W. 6.5M max head, 6m³h Max Flow.
ABS PLASTICPA PLASTICPP PLASTICASA PLASTICSTAINLESS STEEL AISI 316
X5CrNiMO 18 10
CASINGXX
IMPELLERXX
SHAFTX
