Azcue BT-HH Pump Spare Parts

Azcue pump parts

Azcue BT-HH Pump Spare Parts
Guaranteed Supply 15 years
Interchangeable With other Azcue models
Availability Some parts from UK stock


Guaranteed Supply 15 years
Interchangeable With other Azcue models
Availability Some parts from UK stock

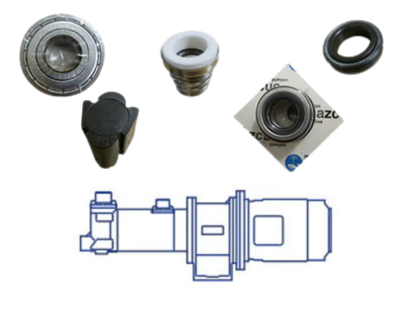

As the UK agent of Azcue, Castle Pumps offer everything you need to keep your Azcue BT-HH Long Coupled Triple Screw Pump running smoothly, including mechanical seals, ball bearings and o rings. Azcue BT-HH pump spares are available for a guaranteed 15 years, to ensure that the pump can continue to be maintained even if the model gets discontinued.

We have extensive technical product knowledge thanks to direct training from Azcue in Spain. We have shortlisted the main Azcue spare parts needed for routine maintenance of the Azcue BT-HH Long Coupled Triple Screw Pump.

1-2 years replacement
3-5 years replacement
  • Thrower 2540
  • Loose Collar Shoulder Ring 2930
  • Radial Ball Bearing 3011
  • Bearing Bush 3610.1-2
  • Mechanical Seal 4200
  • Joint 4510.1 / 2 / 3 / 4 / 5 / 6
  • O-Ring 4610.1 / 2 / 3 / 4 / 5 / 6 / 7 / 8
  • BT-MB KIT MINI (100) 4200 + 4610.5 +4510.2
  • BT-HM KIT MINI (100) 4200 + 4610.3 / 4510.1 / 4510.2 + 7414
  • BT-HM KIT MEDIUM (200) Inc. KIT MINI (100) + 3011
  • BT-IL KIT MINI (100) 4200 + 4510.1 / 4510.2 + 7414
  • BT-IL KIT MEDIUEM (200) Inc. KIT MINI (100) + 3011
  • BT-LH / BT-LV KIT MINI (100) 4200 + 4510.1 / 4510.2 + 7414
  • BT-LH / BT-LV KIT MEDIUM (200) Inc. KIT MINI (100) + 3011
  • BT-DF / BT-DG KIT MINI (100) 4200 + 4610.1 / 4510.1 / 4510.2 + 7414
  • BT-DF / BT-DG KIT MEDIUM (200) Inc. KIT MINI (100) +3011
  • BT-HH KIT MINI (100) 4200 + 4610.7 / 4610.5 / 4610.6 / 4510.2 + 7414
  • BT-HH KIT MEDIUM (200) Inc. KIT MINI (100) + 3610.1
  • Driving Spindle 2160
  • Idler Spindle 2170.1-2
  • Valve Spring 5252.1
  • BT-MB KIT MAX (300) Inc. KIT MINI (100) + 2170.1 / 2160 / 2170.2 + 5251.1
  • BT-HM KIT MAX (300) Inc. KIT MEDIUM (200) + 2170.1 / 2160 / 2170.2 + 5251.1
  • BT-IL KIT MAX (300) Inc. KIT MEDIUM (200) + 2170.1 / 2160 / 2170.2 + 5251.1
  • BT-LH / BT-LV KIT MAX (300) Inc. KIT MEDIUM (200) + 2170.1 / 2160 / 2170.2 + 5252.1
  • BT-DF / BT-DG KIT MAX (300) Inc. KIT MEDIUM (200) + 2170.1 / 2160 / 2170.2 + 5252.1
  • BT-HH KIT MAX (300) Inc. KIT MEDIUM (200) + 2170.1 / 2160 / 2170.2 + 5252.1


To supply you with the correct Azcue BT-HH spares that you require, we will need you to provide us with the pump type and the serial number (both of which you will find on the pump nameplate). From this, we can identify the exact model you have and supply the Azcue pump parts promptly.

Identifying your Azcue pump model:

Azcue Serial Numbers.jpg

  • BT-HH32
  • BT-HH38
  • BT-HH45
  • BT-HH52
  • BT-HH60
  • BT-HH70
  • Castle Pumps offer a complete range of Azcue spare parts in a short lead time, with some popular parts in stock in our UK warehouse for immediate dispatch.
  • Available for a guaranteed 15 years after model discontinuation. This means that even pumps no longer in production can be maintained for a pump's normal working life to prevent premature replacements.
  • Azcue pump parts are interchangeable with some of the other Azcue models to reduce your stockholding requirements when you have more than one pump to maintain.
