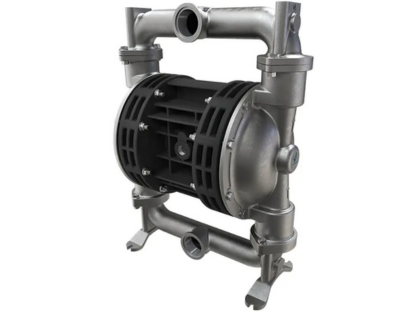

The Debem Boxer 252
Air Operated Diaphragm Pump is an Italian manufactured AODD pump designed to very high standards. The Boxer range are very versatile air operated double diaphragm pumps for use within many industrial applications involving chemicals, process fluids, waste water and is commonly used as a high viscosity pump and for liquids containing solids.
The Boxer AODD pump comes with wetted parts available in a range of materials, making it compatible with almost any fluid on the market. Thanks to its ATEX approval to Zone 2 (Zone 1 on request), it is also suitable for use within potentially flammable environments.
This Debem range of air operated diaphragm pumps are what we like to describe as “Fit and forget” solutions. Thanks to their low maintenance, long service life and little manual intervention required, the air operated diaphragm pumps can just be left to do their job.
Features of the Boxer AODD Pump:
Can be run dry and can pump long distances and dry run without damage, making them unaffected by process stops and pauses in the production line.
Self-priming capabilities of up to 6m for difficult suction conditions
Can handle viscosities up to 50000 cp (depending upon installation)
Patented stall protection - If there is a pressure imbalance the pump will continue running without stalling, reducing downtime and time consuming manual intervention.
Easily adjustable flow - By amending the air inlet pressure, you can efficiently meet the exact flow requirements of an installation/process.
Wide range of uses - Can handle viscous fluids with low moisture content, solids up to 6mm and aggressive chemicals due to the various diaphragm materials.
Low cost to maintain - Long life diaphragms designed for more than 50M cycles and a lot fewer internal wearing parts to maintain compared to equivalent AODD pump models.
Fine tuning of motor speed at a constant pressure.
Actuated via a non-lubricated air system
3 suction & delivery port positions
Can be either submerged into the fluid or surface mounted
ATEX approved to Zones 1 & 2, II 2/2 GD c IIB T135ºC & II 3/3 GD c IIB T135ºC
AODD pump guide for more information on their working principle and applications they are typically suited to.
The Debem Boxer 252 Air Operated Diaphragm Pump is available in the following materials:
PP + glass additive
C PP + with carbon additive
DUPLEX / S. DUPLEX
NOTE: Pumps can be supplied with single or double diaphragms
For abbreviations, please see download 'Material Abbreviations'.
