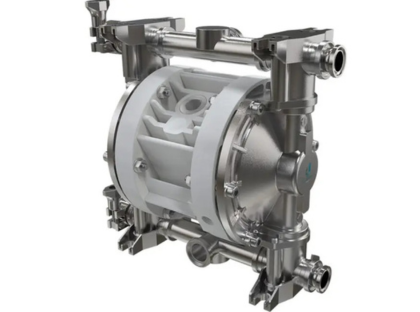

Debem Food Boxer 50 Air Operated Diaphragm Pump

Food Grade Pump & Hygienic Pump

Debem Food Boxer 50 Air Operated Diaphragm Pump
Max Flow Rate 50lpm
Max Head 80M
Max Temperature 95ºC
Outlet Sizes 1/2"
Max Viscosity 20000 cP


Max Flow Rate 50lpm
Max Head 80M
Max Temperature 95ºC
Outlet Sizes 1/2"
Max Viscosity 20000 cP

The Debem Food Boxer 50 Air Operated Diaphragm pump is an Italian manufactured, FDA approved AODD pump. Thanks to its hygienic design, this air operated double diaphragm pump is designed for the food, pharmaceutical and cosmetic industries where a food grade pump is required, including demanding and humid applications.

The Food Boxer AODD pump is made from electro polished stainless steel (AISI 316) and FDA approved PTFE. Thanks to its ATEX approval to Zone 2 (Zone 1 on request), it is also suitable for use within potentially flammable food processing environments such as those where spirits and alcohol are being produced. .

This Debem range of sanitary air operated diaphragm pumps are what we like to describe as “Fit and forget” solutions. Thanks to their low maintenance, long service life and little manual intervention required, the air operated diaphragm pumps can just be left to do their job.

Features of the Food Boxer AODD Pump:

  • Food grade diaphragm pump
  • FDA approved for the safe handling of liquid food stuffs
  • Made from electro polished SS 316 and FDA approved PTFE
  • Can be run dry and can pump long distances and dry run without damage, making them unaffected by process stops and pauses in the production line.
  • Self-priming capabilities of up to 6m for difficult suction conditions
  • Can handle viscosities up to 50000 cp (depending upon installation)
  • Patented stall protection - If there is a pressure imbalance the pump will continue running without stalling, reducing downtime and time consuming manual intervention.
  • Easily adjustable flow - By amending the air inlet pressure, you can efficiently meet the exact flow requirements of an installation/process.
  • Wide range of uses - Can handle viscous fluids with low moisture content, solids up to 4mm and aggressive chemicals due to the various diaphragm materials.
  • Low cost to maintain - Long life diaphragms designed for more than 50M cycles and a lot fewer internal wearing parts to maintain compared to equivalent AODD pump models.
  • Fine tuning of motor speed at a constant pressure.
  • Actuated via a non-lubricated air system
  • 3 suction & delivery port positions
  • Can be either submerged into the fluid or surface mounted
  • ATEX approved to Zones 1 & 2, II 2/2 GD c IIB T135ºC & II 3/3 GD c IIB T135ºC

For more information on the operation of an air operated diaphragm pump and the applications they are commonly chosen for, read here

Key Benefits:



The Debem Food Boxer 50 Air Operated Diaphragm Food Grade Pump is available in the following material options:

Description (A) AISI 316 (H) Hytrel (T) PTFE
Part List
Pump Body X
Fluid Side Diaphragm X
Air Side Diaphragm X
Balls X X
Ball Seats X
O-Rings X
British Apple Company – Air Operated Diaphragm Pump

British Apple Company – Air Operated Diaphragm Pump

Castle Pumps received an enquiry from an apple grower which supplies worldwide cider manufacturers with apple juice from concentrate. They required a pump to transfer small quantities of juice at a time, but was unsure of the fluid's viscosity. Using our experience we were able to determine the viscosity through asking a number of questions, and were therefore able to provide our food grade solution suitable for their needs.

Debem FOOD BOXER AODD pumps have a large range of benefits that make them a “fit and forget” solution ideal for many hygienic processes.

  • FDA approved - Approved as a food grade pump solution for food, drink and pharmaceutical applications
  • Low cost to maintain - Long life diaphragms designed for more than 50M cycles and a lot fewer internal wearing parts to maintain compared to equivalent AODD pump models.
  • Easily adjustable flow - By amending the air inlet pressure, you can efficiently meet the exact flow requirements of an installation/process.
  • Leak-free – It’s seal-less design makes the Food Boxer air operated diaphragm pump a much cleaner operating solution
  • Patented stall protection - If there is a pressure imbalance the pump will continue running without stalling, reducing downtime and time consuming manual intervention.
  • Dry run capabilities – Can dry run without damage, making unaffected by pauses in a production line or instances where the operator has left them running
  • Self-priming up to 6m – Do not need an additional manual priming device to enable them to draw long distances.
  • Versatile - Can handle all matters of liquid food products including viscous sauces and syrups, solid content e.g. juices with pulp and additives due to the various diaphragm materials.

AODD pumps are a versatile type of pump design, able to transfer a large range of high and low viscosity fluids thanks to the multiple materials diaphragms are constructed of. The Debem Food Boxer air operated food grade diaphragm pumps, as their name suggests, are food transfer pump solutions approved as safe for use with food and pharmaceutical products by FDA. Their pumping mechanism makes them suitable for most liquid food products including those containing solids (up to 4mm diameter) and shear sensitive fluids. Thanks to running off air supply, these food safe air operated diaphragm pumps are often chosen as a pumping solution in hazardous environments where it isn't safe to have a mains electrical supply for example in a brewery or distillery.

Marine Applications Industrial Applications
  • Drinking water
  • Beer, wine and spirit production
  • Creams, gels and soaps
  • Sauces and syrups
  • Dairy products
  • Fruit juice and pulp
  • Vegetable oils
  • Dosing ingredients/additives
  • Drinking water
