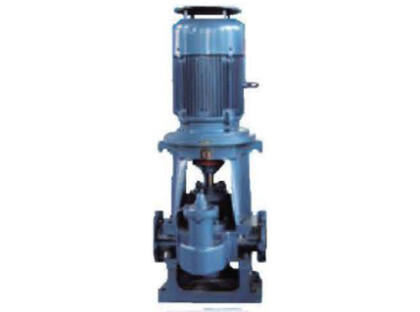

Azcue LHB Vertical Eccentric Gear Pump

Fuel Transfer & Lubricant Pumps

Azcue LHB Vertical Eccentric Gear Pump
Flow Rate Up to 100M³H
Max Head (pressure) Up to 6 Bar
Outlet Sizes DN25-200
Max Temperature 80°C


Flow Rate Up to 100M³H
Max Head (pressure) Up to 6 Bar
Outlet Sizes DN25-200
Max Temperature 80°C

The Azcue LHB Vertical Eccentric Gear Pump is designed for the transfer of lubricating fluids with varying viscosities up to 1500cSt, the LKB is therefore designed for handling larger volumes of fuels and oils. Thanks to its vertical construction it is a good solution for when space within the installation is an issue.

The self-priming and high pressure nature of the gear pump design makes it ideal for applications with difficult suction conditions, for example where the fluid needs to be pumped over a long distance or when the pump is situated above the fluid.

Being long coupled, these LHB Eccentric gear pumps are easier to maintain as you can get to the pump head without removing the motor first, and are also more durable for continuous use as it has additional bearings in the pump head to share the strain of operation.

Features of the LHB Gear Pump:

  • Long coupled, self-priming gear pump
  • High pressure capabilities for difficult suction conditions
  • Smooth, pulseless flow
  • Additional bearings in pump head to share the strain of operation
  • Inline ports, supplied flanged as standard
  • Vertical orientation for space saving
  • Pressure differential safety valve – 1.5 times the rated pressure
  • Gland packing or mechanical seal
  • Suitable for lube and fuel oils between 5-1500cSt
  • 230v, three phase 50Hz/60Hz motors available. IP55 as standard

Material options for the Azcue LHB Eccentric Gear Pump


Cast IronCast SteelCarbon SteelAlloyS/SDuplex S/S
CasingXX
GearsXXXX
ShaftXX
Marine Applications:Industrial Applications:
  • Fuel oil cargo pumps for vessel loading and unloading
  • Fuel transfer such as marine gas oil (MGO) and
    heavy fuel oil (HFO)
  • Lube oil transfer between containers
  • Circulating lubricants around a system to ensure the
    engines and gearbox
  • Thermal oil pump for burner/boiler feed
  • Fuel transfer pumps for handling diesel and fuel oil
  • Lube oil transfer between containers
  • Circulating lubricants around a system to ensure the
    engines and gearbox
  • Fuel oil separating
  • Thermal oil pump for burner/boiler feed
