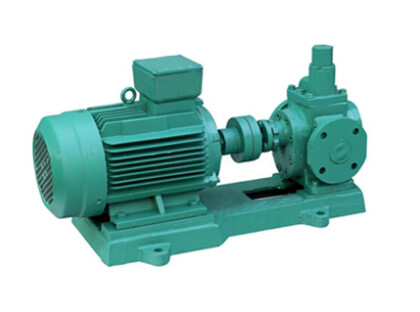

Azcue YCB Horizontal Gear Pump

Fuel Transfer & Lubricant Pumps

Azcue YCB Horizontal Gear Pump
Flow Rate Up to 97M³H
Max Head (pressure) Up to 16 Bar
Outlet Sizes DN25-125
Max Temperature 80°C


Flow Rate Up to 97M³H
Max Head (pressure) Up to 16 Bar
Outlet Sizes DN25-125
Max Temperature 80°C

The Azue LCB Horizontal Gear Pump is designed for the handling of lubricating fluids such as fuels and oils with a viscosity up to 1500cSt.

The self-priming and high pressure nature of the gear pump design makes it suitable for installations where suction conditions aren’t ideal, for example where the fluid needs to be pumped over a long distance or where the pump is located above the fluid.

Thanks to their long coupling, the YCB gear pumps are easier to maintain as you can get to the pump head without removing the motor first. It also makes them more durable for continuous use as they have additional bearings in the pump head to share the strain of operation.

  • Long coupled, self-priming gear pump
  • High pressure capabilities for difficult suction conditions
  • Smooth, pulseless flow
  • Additional bearings in pump head to share the strain of operation
  • Inline ports, supplied flanged as standard
  • Horizontal orientation
  • Pressure differential safety valve – 1.5 times the rated pressure
  • Soft packing or mechanical seal
  • Suitable for lube and fuel oils between 5-1500cSt
  • 230v, three phase 50Hz/60Hz motors available. IP55 as standard
Marine Applications:Industrial Applications:
  • Fuel oil cargo pumps for vessel loading and unloading
  • Fuel transfer such as marine gas oil (MGO),
    heavy fuel oil (HFO) and low sulphur (LSFO)
  • Lube oil transfer between containers
  • Circulating lubricants around a system to ensure the
    engines and gearbox
  • Thermal oil pump for burner/boiler feed
  • Closed loop HVAC circulating and cooling pumps
  • General water transfer, supply and service
  • Waste water with low solid content
  • Water pressure booster pump
  • Swimming pool recirculation systems
  • Low viscosity fuel and lubrication transfer
  • Boiler feed pump

Material options for the Azcue YCB Eccentric Gear Pump

 Cast IronCast SteelCarbon SteelAlloyS/SDuplex S/S
CasingXX
Gears  XXXX
ShaftXX
