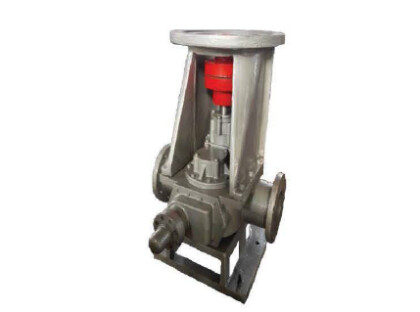

Azcue LKB Vertical Helical Gear Pump

Fuel Transfer & Lubricant Pumps

Azcue LKB Vertical Helical Gear Pump
Flow Rate Up to 325M³H
Max Head (pressure) Up to 10 Bar
Outlet Sizes DN150-300
Max Temperature 150°C


Flow Rate Up to 325M³H
Max Head (pressure) Up to 10 Bar
Outlet Sizes DN150-300
Max Temperature 150°C

The Azcue LKB Vertical Helical Gear Pump is a higher flow, high pressure alternative to the LHB model. Designed for the transfer of lubricating fluids with varying viscosities up to 1500cSt, the LKB is therefore designed for handling larger volumes of fuels and oils.

The self-priming and high pressure nature of the gear pump design makes it ideal for applications with difficult suction conditions, for example where the fluid needs to be pumped over a long distance or when the pump is situated above the fluid.

Being long coupled, these LKB helical gear pumps are easier to maintain as you can get to the pump head without removing the motor first, and are also more durable for continuous use as it has additional bearings in the pump head to share the strain of operation.

Features of the LKB Gear Pump:

  • Long coupled, self-priming helical gear pump
  • High pressure capabilities for difficult suction conditions
  • Smooth, pulseless flow
  • Additional bearings in pump head to share the strain of operation
  • Inline ports, supplied flanged as standard
  • Vertical orientation for space saving
  • Pressure differential safety valve – 1.5 times the rated pressure
  • Gland packing or mechanical seal
  • Suitable for lube and fuel oils between 5-1500cSt
  • 230v, three phase 50Hz/60Hz motors available. IP55 as standard

Material options for the Azcue LKB Helical Gear Pump

 Cast IronCast SteelCarbon SteelAlloyS/SDuplex S/S
CasingXX
Gears  XXXX
ShaftXX
Marine Applications:Industrial Applications:
  • Fuel oil cargo pumps for vessel loading and unloading
  • Fuel transfer such as marine gas oil (MGO),
    heavy fuel oil (HFO) and low sulphur (LSFO)
  • Lube oil transfer between containers
  • Circulating lubricants around a system to ensure the
    engines and gearbox
  • Thermal oil pump for burner/boiler feed
  • Fuel transfer pumps for handling diesel and fuel oil
  • Lube oil transfer between containers
  • Circulating lubricants around a system to ensure the
    engines and gearbox
  • Fuel oil separating
  • Thermal oil pump for burner/boiler feed
