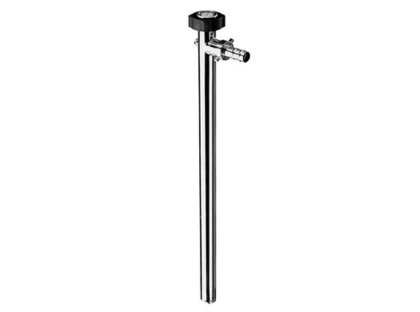

Flux F430 Barrel Pump

Chemical Pump & Grease Pump

Flux F430 Barrel Pump
Flux F430 Barrel Pump
Flux F430 Barrel Pump
Flow Rate Up to 240L/min
Max Head (pressure) Up to 30m
Max Temperature 120°C
Immersion Lengths 500, 700, 1000, 1200, 1500, 1800, 2000, 2500, 3000mm
Max. Viscosity 1200 cP


Flow Rate Up to 240L/min
Max Head (pressure) Up to 30m
Max Temperature 120°C
Immersion Lengths 500, 700, 1000, 1200, 1500, 1800, 2000, 2500, 3000mm
Max. Viscosity 1200 cP

The Flux F430 Series Electric Barrel Pump is designed for transferring light liquids including chemicals, acids and oil up to 1200 cP from small containers, drums and IBCs. This Flux drum pump leads in our product range due to its versatility and long life in heavy-duty applications. The F430 chemical barrel pump comes with a mechanical seal protecting the pump's inner tube against the pumped fluid, preventing cross-contamination. Therefore, as the Flux pump supplier, we recommend this chemical pump model over the Flux F424 seal-less model for transferring multiple different liquids and handling solids up to 2mm with less wear.

Suitable to handle abrasive, crystallizing or high-temperature liquids, this chemical transfer pump can be easily disassembled for cleaning and maintenance due to its simple two-piece construction. The F430 chemical barrel pump is available in different materials and immersion lengths, including stainless steel FDA-approved models suitable for alcohol transfer and ATEX, certified drum pump models.

The PP and PVDF versions of this electric drum pump for chemicals are the most robust versions of the F430 due to steel re-inforced over-moulded inner tubes. The steel cored inner tube of these Flux pump models provide stability and extend the service life of the mechanical seal when pumping high temperature fluids. Thanks to the 5 brass shaft support bearings, F430 Flux drum pumps has optimal driveshaft support and resistance to vibration.

Features of the F 430 Flux Drum Pump:

  • Heavy duty, electric barrel pump

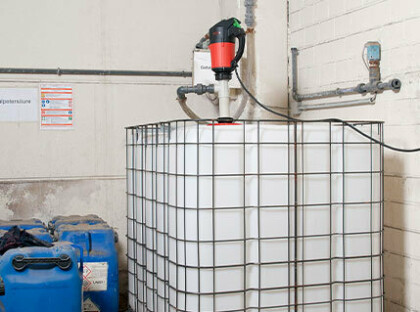

  • Ideal for dispensing from IBCs and drums
  • Suitable for handling many low viscosity liquids up to 1200CP
  • Handles abrasives and solid particles up to 2mm with minimal wear
  • The unique barrel pump design in PP and PVDF comes complete with a steel cored inner tube to provide stability and extend the service life of the mechanical seal, even at high temperatures
  • 5 heavy duty brass bearings for optimal driveshaft support and stability
  • Sealed inner tube - the liquid being pumped cannot enter the inner tube
  • Optimum barrel emptying due to unique impellor design
  • Easy to dismantle for cleaning with minimum effort
  • Models in stainless steel and Hastelloy C are tested and certified according to ATEX-Directive 94/9/EC, category 1/2, for use in Zone 0 – EC-Type-Examination Certificate No. PTB 00 ATEX 4110 X
  • Range of motors available including brushless motors, commutator motors, air motors and three-phase gear motors
  • F 430 AL-41/38 Aluminium, S/S shaft and NBR seal:
  • 430 10 107 – 700mm Immersion Length
  • 430 10 110 – 1000mm Immersion Length
  • 430 10 112 – 1200mm Immersion Length
  • F 430 AL-50/38 Aluminium, S/S shaft and NBR seal:
  • 430 10 307 – 700mm Immersion Length
  • 430 10 310 – 1000mm Immersion Length
  • 430 10 312 – 1200mm Immersion Length
  • F 430 AL-41/37Z Aluminium, S/S shaft and NBR seal. For increased pumping head:
  • 430 10 407 – 700mm Immersion Length
  • 430 10 410 – 1000mm Immersion Length
  • 430 10 412 – 1200mm Immersion Length
  • F 430 S-41/38 S/S, S/S shaft and FKM seal. Ex Marking II ½ G IIB T4:
  • 430 20 107 – 700mm Immersion Length
  • 430 20 110 – 1000mm Immersion Length
  • 430 20 112 – 1200mm Immersion Length
  • F 430 S-41/38 S/S, S/S shaft and EPDM seal. Ex Marking II ½ G IIB T4:
  • 430 28 110 – 1000mm Immersion Length
  • 430 28 112 – 1200mm Immersion Length
  • F 430 S-50/45Z S/S, S/S shaft and FKM seal. Ex Marking II ½ G IIB T4. For increased pumping head:
  • 430 20 207 – 700mm Immersion Length
  • 430 20 210 – 1000mm Immersion Length
  • 430 20 212 – 1200mm Immersion Length
  • F 430 S-41/38 S/S, S/S shaft and FFKM seal. Ex Marking II ½ G IIB T4:
  • 430 29 110 – 1000mm Immersion Length
  • 430 29 112 – 1200mm Immersion Length
  • F 430 S-41/37Z S/S, S/S shaft and FKM seal. Ex Marking II ½ G IIB T4. For increased pumping head:
  • 430 20 407 – 700mm Immersion Length
  • 430 20 410 – 1000mm Immersion Length
  • 430 20 412 – 1200mm Immersion Length
  • F 430 Ex S-41/38 FOOD S/S, FKM seal. Ex Marking II ½ G IIB T4:
  • 430 20 507 – 700mm Immersion Length
  • 430 20 510 – 1000mm Immersion Length
  • 430 20 512 – 1200mm Immersion Length
  • F 430 HC-40/38 Hastelloy C, Hastelloy C shaft, FFKM seal. Ex Marking II ½ G IIB T4:
  • 430 30 107 – 700mm Immersion Length
  • 430 30 110 – 1000mm Immersion Length
  • 430 30 112 – 1200mm Immersion Length
  • F 430 PP-40/33 Polypropylene, Hastelloy C shaft, FKM seal:
  • 430 40 107 – 700mm Immersion Length
  • 430 40 110 – 1000mm Immersion Length
  • 430 40 112 – 1200mm Immersion Length
  • F 430 PP-40/33Z Polypropylene, Hastelloy C shaft, FKM seal. For increased pumping head:
  • 430 40 407 – 700mm Immersion Length
  • 430 40 410 – 1000mm Immersion Length
  • 430 40 412 – 1200mm Immersion Length
  • F 430 PP-40/33 Polypropylene, Hastelloy C shaft, EPDM seal:
  • 430 48 110 – 1000mm Immersion Length
  • 430 48 112 – 1200mm Immersion Length
  • F 430 PP-50/38 Polypropylene, Hastelloy C shaft, FKM seal:
  • 430 40 307 – 700mm Immersion Length
  • 430 40 310 – 1000mm Immersion Length
  • 430 40 312 – 1200mm Immersion Length
  • F 430 PVDF-40/33 Polyvinylidene, Hastelloy C shaft, FKM seal:
  • 430 60 107 – 700mm Immersion Length
  • 430 60 110 – 1000mm Immersion Length
  • 430 60 112 – 1200mm Immersion Length
  • F 430 PVDF-40/33Z Polyvinylidene, Hastelloy C shaft, FKM seal. For increased pumping head:
  • 430 60 407 – 700mm Immersion Length
  • 430 60 410 – 1000mm Immersion Length
  • 430 60 412 – 1200mm Immersion Length
  • F 430 PVDF-50/38 Polyvinylidene, Hastelloy C shaft, FKM seal:
  • 430 60 307 – 700mm Immersion Length
  • 430 60 310 – 1000mm Immersion Length
  • 430 60 312 – 1200mm Immersion Length
  • F 430 PVDF-40/33 Polyvinylidene, Hastelloy C shaft, FFKM seal:
  • 430 69 110 – 1000mm Immersion Length
  • 430 69 112 – 1200mm Immersion Length
  • F 430 PVDF-50/43Z Polyvinylidene, Hastelloy C shaft, FKM seal. For increased pumping head:
  • 430 60 207 – 700mm Immersion Length
  • 430 60 210 – 1000mm Immersion Length
  • 430 60 212 – 1200mm Immersion Length
  • F 430 PP-100/53 Polyvinylidene, Hastelloy C shaft, FKM seal:
  • 430 40 510 – 1000mm Immersion Length
  • 430 40 512 – 1200mm Immersion Length
  • 430 40 515 – 1500mm Immersion Length
  • F 430 S-41/38 TR Dry installation, horizontal and vertical installation. S/S, S/S shaft:
  • 430 20 002 –G 2” male inlet, G 1 ¼” Male outlet. FKM seal
  • 430 29 012 – 2” Clamp inlet, 1 ½” Clamp outlet. FEP/FKM seal
  • 430 29 022 –1 ½” Clamp inlet, 1” Clamp outlet. FEP/FKM seal
  • F 430 PP-41/38 TR Dry installation, horizontal and vertical installation. Polypropylene, Hastelloy C shaft:
  • 430 40 002 –G 2” male inlet, G 1 ¼” Male outlet. FKM seal
  • MINIFLUX. Ex marking II 2 G c IIB TX. Stainless steel, Stainless steel shaft, FKM/NBR seal:
  • 430 20 003 – Union nut S 6 x 6 inlet. G 1 ¼” male discharge connection

The Flux F430 Series Drum Pumps are available with the following material options:

PPPVDFSTAINLESS STEEL 316
L/316 Ti (S)
ALUMINIUMHASTELLOY C
TUBESETXXXXX

This Flux pump is a perfect pumping solution for transferring fluids that change frequently, hardening liquids, solid particles, fast drying and crystallizing liquids from drum or IBC. The chemical barrel pump is one of our leading products due to its versatility and long life.

  • High-quality barrel pump – Flux pumps are well known German-made barrel pumps that have been in the market for over 70 years.
  • Quickly disassembled for cleaning – The F430 chemical transfer pump can be quickly and easily taken apart for cleaning due to simple two-piece construction and screw-on foot piece.
  • Handle fluids containing solids – This Flux drum pump can handle solids up to 2mm with minimal wear.
  • Reinforced inner tube – F430 plastic model has steel re-inforced over-moulded inner tubes, preventing leakage and unnecessary mechanical seal wear when pumping high temperature liquids.
  • Transferring multiple fluids- This electric drum pump comes with a mechanic seal that protects the pump's inner tube against the pumped fluid, limiting the risk of cross-contamination.

The Flux F430 electric barrel pump is designed for transferring light liquids, including chemicals, acids and oil up to 1200 cP. The chemical pump is also available in different materials and immersion lengths to suit almost every low viscosity barrel pumping application.

  • Acids such as hydrochloric acid, boric acid, sulfuric acid, citric acid
  • Petroleum, diesel, heating oil, hydraulic oil, engine oil, machine oil
  • Gasoline, formic acid (as from 85 %), ethylene glycol, petroleum
  • Ethanol, methanol, butanol, acetone ect.
