Azcue BT-BLOC Vertical Screw Pump Module

Fuel Transfer & Lubricant Pumps

Azcue BT-BLOC Vertical Screw Pump ModuleAzcue BT-BLOC Vertical Screw Pump Module
Flow Rate Up to 10M³H
Max Head (pressure) Up to 16 Bar
Outlet Sizes DN1” to 1.5”
Max Temperature 160°C


Flow Rate Up to 10M³H
Max Head (pressure) Up to 16 Bar
Outlet Sizes DN1” to 1.5”
Max Temperature 160°C

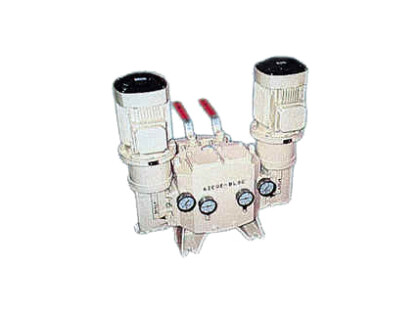

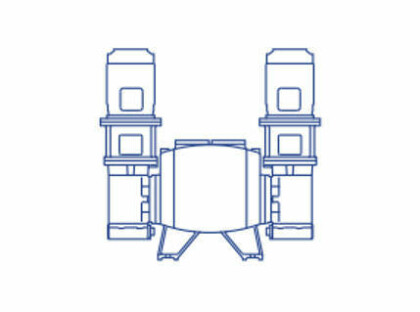

The Azcue BT-BLOC is a compact designed pumping module which includes two BT-HM triple screw pumps, two stainless steel filters, gauges and valves. The BT-BLOC acts like a booster unit with two screw pumps mounted on a common block, and can operate on a single screw pump, whilst the other is on stand-by. This screw pump pumping module is ideal for applications where either fuel oil pressure needs boosting for a diesel engine or burners. They are also utilised in lubrication systems or for lubricant cooling.

  • 2 x BT-HM triple screw pumps
  • 2 x stainless steel filters with 0.5mm mesh
  • 2 x safety valves, 2 x non return valves and 2 x shut off valves
  • 2 x manometers for discharge and 2 x manovacuometers for suction
  • Maintain in situ capability
  • Suitable for diesel, heavy fuel oil or lube oil
  • Available with magnetic coupled pumps as part of a low maintenance, zero leakage system

Key Benefits:





The Azcue BT-BLOC Triple Screw Pump Pumping Module is available with the following material options:

CAST IRON
GG25
NITRIDED CAST DUCTILE IRON
GGG40
NITRIDED STEELHARDENED STEEL
CASINGXX
DRIVING SPINDLE
XX
IDLER SPINDLEXX
