Azcue JSW Close Coupled Self Priming Centrifugal Pump

Centrifugal Water Pump

Azcue JSW Close Coupled Self Priming Centrifugal Pump
Flow Rate Up to 7.2M³H
Max Head (Pressure) Up to 52M
Inlet / Outlet Sizes 1” – 1 ¼”
Max Liquid Temp 50°C
Suction Head 9m


Flow Rate Up to 7.2M³H
Max Head (Pressure) Up to 52M
Inlet / Outlet Sizes 1” – 1 ¼”
Max Liquid Temp 50°C
Suction Head 9m

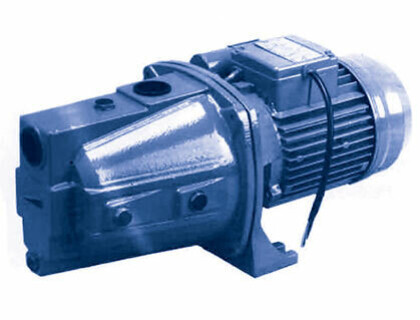

The Azcue JSW Monobloc Pump is a close coupled, self priming centrifugal pump with venturi air ejector system. This self priming pump range are used in industrial, marine and domestic applications to handle clean, non-abrasive water up to 50°C in such applications as pressure sets, water supplies and small scale irrigation. The Azcue centrifugal water pumps have a 9 metre suction lift, can pump heads up to 52 metres and have a high tolerance to entrained air in the liquid being pumped.

Features of the JSW Self Priming Pump:

  • Self priming close coupled centrifugal pump
  • 1 – 3 phase 50 / 60Hz IEC motors.
  • TEFC motors as standard.
  • Lloyds / ABS approved.
  • Interchangeable spares across the range.
  • Assembly without alignment.
  • Installation of a foot valve on the suction pipe or check valve on the pump inlet is recommended.

Key Benefits:





  • JSWm -1a
  • JSWm – 2H
  • JSWm – 3CM
  • JSW – 1a
  • JSW – 2H
  • JSW – 3CM

Material options for the Azcue JSW Self Priming Close Coupled Centrifugal Pump:

Cast IronBrassStainless Steel
Pump BodyX
ImpellerX
ShaftX
