Gemmecotti HCO Mechanical Sealed Centrifugal Pump

Chemical Pump

Gemmecotti HCO Mechanical Sealed Centrifugal Pump
Flow Rate Up to 60m³/hr
Max Head (Pressure) Up to 38m
Max Temperature 90°C
Maximum Viscosity 200 cSt
Inlet/Outlet Sizes From 1” to 3”


Flow Rate Up to 60m³/hr
Max Head (Pressure) Up to 38m
Max Temperature 90°C
Maximum Viscosity 200 cSt
Inlet/Outlet Sizes From 1” to 3”

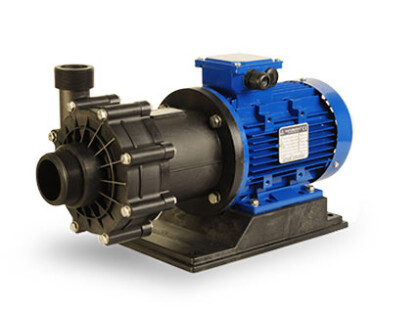

The Gemmecotti HCO Series Mechanical Sealed Centrifugal Pump is a non-metallic, mechanically sealed pump constructed in plastic and designed for pumping highly corrosive liquids containing solids in suspension. The horizontal centrifugal pump is sealed by a lip seal on smaller models and a mechanical seal on larger models. The HCO series is supplied with an open impeller as standard to allow the safe passage of small solids in suspension. Typical applications include; highly corrosive liquids, toxic, noxious and carcinogenic liquids and corrosive liquids containing solids in suspension.

  • Suitable for highly corrosive liquids containing solids in suspension
  • Open impeller
  • Max temperature 90°C
  • Max viscosity 200 cSt
  • 230V, 3 Phase 50hz / 60hz motors available.
  • Flanges, baseplate, dry running available on request.
  • HCO 95-10 - Max Flow 10 m³h. Max head 9M. DN25 outlet. 0.55 Kw.
  • HCO 110 - Max Flow 18 m³h. Max head 12M. DN50 outlet. 1.1 Kw.
  • HCO 120 - Max Flow 24 m³h. Max head 14M. DN50 outlet. 1.5 Kw.
  • HCO 130 - Max Flow 30 m³h. Max head 17M. DN50 outlet. 2.2 Kw.
  • HCO 140 - Max Flow 40 m³h. Max head 21M. DN50 outlet. 3 Kw.
  • HCO 150 - Max Flow 45 m³h. Max head 25M. DN65 outlet. 5.5 Kw.
  • HCO 155 - Max Flow 50 m³h. Max head 28M. DN65 outlet. 5.5 Kw.
  • HCO 160 - Max Flow 55 m³h. Max head 36M. DN65 outlet. 7.5 Kw.
  • HCO 170 - Max Flow 58 m³h. Max head 38M. DN65 outlet. 7.5 Kw.

The Gemmecotti HCO Series Non-metallic mechanically sealed centrifugal pumps are available with the following material options:

PPPVDFEPDMVITONC 40, AISI316
CasingXX
ImpellerXX
O-RingXX
ShaftX
