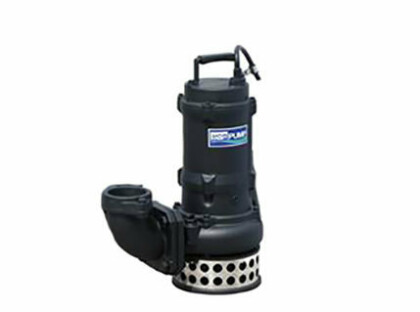

HCP AL Series Submersible Pump

Waste Water Pump

HCP AL Series Submersible Pump
Flow Rate Up to 120M³H
Max Head (pressure) Up to 44M
Outlet Sizes 50-100mm
Max Temperature 40°c
Free Passage 20mm


Flow Rate Up to 120M³H
Max Head (pressure) Up to 44M
Outlet Sizes 50-100mm
Max Temperature 40°c
Free Passage 20mm

The HCP AL Series Submersible Pump is designed to be used in the removal and drainage of waste water for all industries, pumping surface water and for the pumping of water from lakes and rivers. The submersible water pumps, which can be customised to fit specifications, can come with an optional float switch if required, and is able to pass solids up to 20mm. The AL Series sump pump is available with motors up to 7.5Kw and can achieve a flow rate up to 120m³/hr.

  • Waste water and drainage water removal
  • Can cope with solids up to 20mm
  • Available to be customised to fit specifications
  • Versions with or without a float switch
  • Guide rail system available
  • Equipped with Auto-cut, silicon carbide double mechanical seal, epoxy cable base.
  • 230v and three phase 50Hz / 60Hz motors available

  • 50AL21.5 - 1.5Kw, 1-3 phase, 50-60Hz motor. 50mm outlet, 12M max Head, 24m³h. 20mm free passage.
  • 50AL22.2 - 2.2Kw, 1-3 phase, 50-60Hz motor. 50mm outlet, 17.5M max Head, 24m³h. 20mm free passage.
  • 80AL21.5 - 1.5Kw, 1-3 phase, 50-60Hz motor. 80mm outlet, 8M max Head, 36m³h. 20mm free passage.
  • 80AL22.2 - 2.2Kw, 1-3 phase, 50-60Hz motor. 80mm outlet, 12M max Head, 36m³h. 20mm free passage.
  • 80AL23.7A - 3.7Kw, 3 phase, 50-60Hz motor. 80mm outlet, 20.5M max Head, 36m³h. 20mm free passage.
  • 80(100)AL25.5 - 5.5Kw, 3 phase, 50-60Hz motor. 80/100mm outlet, 28/21.5M max Head, 36/60m³h. 20mm free passage.
  • 80(100)AL27.5 - 7.5Kw, 3 phase, 50-60Hz motor. 80/100mm outlet, 36/29.5M max Head, 36/60m³h. 20mm free passage.
CAST IRONSTAINLESS STEEL AISI
316 X5CrNiMO 18 10
CASINGX
IMPELLERX
SHAFTX
