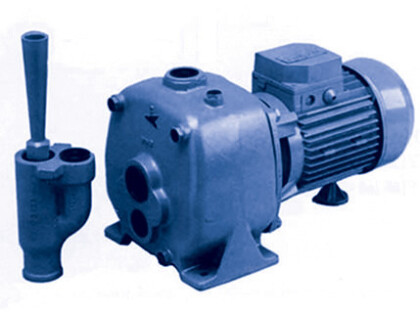

Azcue JDW Close Coupled Centrifugal Pump

Centrifugal Water Pump

Azcue JDW Close Coupled Centrifugal Pump
Flow Rate Up to 3M³H
Max Head (Pressure) Up to 60M
Inlet / Outlet sizes 1”
Max Liquid Temp 50°C


Flow Rate Up to 3M³H
Max Head (Pressure) Up to 60M
Inlet / Outlet sizes 1”
Max Liquid Temp 50°C

The Azcue JDW Monoblock Pump is a deep well, close coupled centrifugal pump that comes with a venturi air ejector priming system. These are used when suction heads higher than 8 – 9 metres are needed. The JDW monobloc centrifugal pumps are able to handle clean water that does not contain any abrasive particles or solids and temperatures up to 50°C. The minimum borehole diameter for the venturi ejector installation is 100mm (4”). These Azcue centrifugal water pumps are used in applications that include pressure sets, the irrigation of gardens and allotments and where there is entrained air in the water being pumped.

Features of the JDW Single Stage Centrifugal Pump:

  • Monoblock horizontal centrifugal pump
  • 1 – 3 phase 50 / 60Hz IEC motors.
  • TEFC motors as standard.
  • Lloyds / ABS approved.
  • Interchangeable spares across the range.
  • Assembly without alignment.
  • The ejector system must have a foot valve coupled to it and a gate valve fitted on the pump outlet.

Key Benefits:





  • JDWm – 1b
  • JDWm – 1a
  • JDWm – 2
  • B – 15CP
  • JDW – 1b
  • JDW – 1a
  • JDW – 2
  • B – 15T

Material options for the Azcue JDW Close Coupled Centrifugal Pump:

Cast IronBrassStainless Steel
Pump BodyX
ImpellerX
ShaftX
