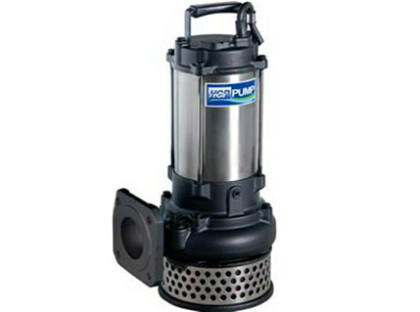

HCP A Series Submersible Pump

Waste Water Pump

HCP A Series Submersible Pump
Flow Rate Up to 42M³H
Max Head (Pressure) Up to 25M
Outlet Sizes 50-100mm
Max Temperature 40°C
Free Passage 11mm Max


Flow Rate Up to 42M³H
Max Head (Pressure) Up to 25M
Outlet Sizes 50-100mm
Max Temperature 40°C
Free Passage 11mm Max

The HCP A/AN series submersible water pump is used primarily for the removal of waste water, dirty water, drainage water and flood control. Typical installations for this sump pump include basements, sumps and fish ponds. This wastewater pump range is available with or without a float switch depending upon the requirement, and allows for free passage of solids up to 11mm. The A/AN series submersible pump is available with motors up to 2.2Kw and can achieve flow rates up to 42m³/hr.

  • For waste water, dirty water and drainage water
  • Solid handling up to 11mm
  • Available with or without float switch
  • Equipped with auto-cut, silicon carbide double mechanical seal, epoxy cable base treatment
  • 230v and three phase 50hz / 60hz motors available
  • A05B - 8M max head, 6 m³h, 7.5mm free passage, 50 mm Outlet. 0.4Kw, 50-60Hz, 1-3 phase motor.
  • A05L - 7M max head, 9 m³h, 8mm free passage, 50 mm Outlet. 0.4Kw, 50-60Hz, 1-3 phase motor.
  • A21 - 10M max head, 10.8 m³h, 10mm free passage, 50 mm Outlet. 0.75Kw, 50-60Hz, 1-3 phase motor.
  • A31 - 6.5M max head, 18 m³h, 10mm free passage, 80 mm Outlet. 0.75Kw, 50-60Hz, 1-3 phase motor.
  • A32T - 12M max head, 24 m³h, 10.5mm free passage, 80 mm Outlet. 1.5Kw, 50-60Hz, 1-3 phase motor.
  • A23 – 24.5M max head, 12 m³h, 10.5mm free passage, 50 mm Outlet. 2.2Kw, 50-60Hz, 1-3 phase motor.
  • A33 - 16M max head, 24 m³h, 10.5mm free passage, 80 mm Outlet. 2.2Kw, 50-60Hz, 1-3 phase motor.
  • A33H - 23M max head, 24 m³h, 11mm free passage, 80 mm Outlet. 3Kw, 60Hz, Single phase motor.
  • A43 - 10M max head, 42 m³h, 10.5mm free passage, 100 mm Outlet. 2.2Kw, 50-60Hz, 1-3 phase motor.
  • A-05A - 8M max head, 6 m³h, 7.5mm free passage, 50 mm Outlet. 0.4Kw, 50-60Hz, 1-3 phase motor.
PA PLASTICCAST IRONSTAINLESS STEEL AISI 316
X5CrNiMO 1810
CASINGX
IMPELLERXX
SHAFTX
