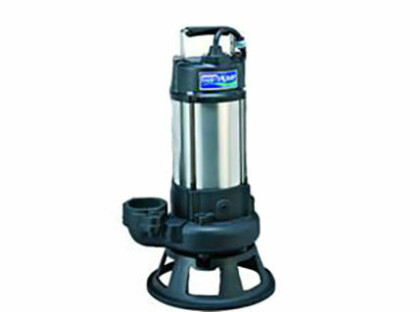

HCP F Series Submersible Pump

Waste Water & Sewage Pump

HCP F Series Submersible Pump
Flow Rate Up to 60M³H
Max Head (Pressure) Up to 26M
Outlet Sizes 50-80mm
Max Temperature 40°c
Free Passage 35mm
Enquire about
this product

OR

Add to my enquiry list
Performance Curve 50HZ Performance Curve 60HZ


Flow Rate Up to 60M³H
Max Head (Pressure) Up to 26M
Outlet Sizes 50-80mm
Max Temperature 40°c
Free Passage 35mm
Performance Curve 50HZ Performance Curve 60HZ
Enquire about this product

OR

Add to my enquiry list

The HCP F/FN Series Submersible Pump is a popular option for the removal of sewage from building basements, sewage pump stations, septic tanks and cesspits, as well as the removal of wastewater from sprinkler systems and garages. This submersible water pump range is available with or without a float switch and allows for free passage of solids up to 35mm. The F/FN Series Sump Pump is available with motors up to 3.7Kw and can achieve flow rates up to 60m³/hr.

  • Removal of sewage, waste water and drainage water
  • 35mm solid handling capacity
  • Vortex or cutter impeller available
  • Optional float switch
  • Accessories include: AC Thermal motor protectors, epoxy resin sealed cables, water resistant cable bases, lip seal design and double mechanical seals
  • 230v and three phase 50Hz / 60Hz motors available
  • F-05U - 50mm Outlet, 6M max head, 9 m³h, 35mm free passage. 0.4Kw, 50-60Hz, 1/3 phase motor.
  • F-21U - 50mm Outlet, 8M max head, 12 m³h, 35mm free passage. 0.75Kw, 50-60Hz, 1/3 phase motor.
  • F-31U - 80mm Outlet, 6.5M max head, 18 m³h, 30mm free passage. 0.75Kw, 50-60Hz, 1/3 phase motor.
  • F-32TU - 80mm Outlet, 9M max head, 24 m³h, 25mm free passage. 1.5Kw, 50-60Hz, 1/3 phase motor.
  • F-33U - 80mm Outlet, 11.5M max head, 30 m³h, 25mm free passage. 2.2Kw, 50-60Hz, 1/3 phase motor.
  • F-05P - 50mm Outlet, 5.5M max head, 12 m³h, 22mm free passage. 0.4Kw, 50-60Hz, 1/3 phase motor.
  • F-21P - 50mm Outlet, 9M max head, 12 m³h, 26mm free passage. 0.75Kw, 50-60Hz, 1/3 phase motor.
  • F-32TP - 80mm Outlet, 9M max head, 30 m³h, 32mm free passage. 1.5Kw, 50-60Hz, 1/3 phase motor.
  • F-33P - 80mm Outlet, 10.5M max head, 36 m³h, 35mm free passage. 2.2Kw, 50-60Hz, 1/3 phase motor.
  • F-05A - 50mm Outlet, 8M max head, 6 m³h, 10mm free passage. 0.4Kw, 50-60Hz, 1/3 phase motor.
  • F-35U - 80mm Outlet, 16M max head, 36 m³h, 25mm free passage. 3.7Kw, 60Hz, 3 phase motor.
  • F-35P - 80mm Outlet, 17M max head, 36 m³h, 35mm free passage. 0.4Kw, 60Hz, 3 phase motor.

The HCP F Series Submerisble Sewage pump is available in the following material options:

PA PLASTICCAST IRONSTAINLESS STEEL AISI 316
X5CrNiMO 18 10
CASINGX
IMPELLERXX
SHAFTX
