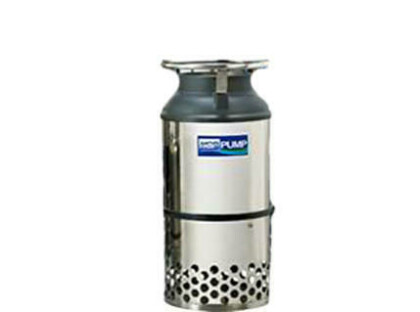

HCP L Series Submersible Pump

Dewatering Pump

HCP L Series Submersible Pump
Flow Rate Up to 480M³H
Max Head (Pressure) Up to 7M
Outlet Sizes 80-300mm
Max Temperature 40°c
Free Passage 33mm


Flow Rate Up to 480M³H
Max Head (Pressure) Up to 7M
Outlet Sizes 80-300mm
Max Temperature 40°c
Free Passage 33mm

The HCP L Series Submersible Pump is used primarily in large water applications such as the pumping and drainage of agricultural water, large scale dewatering and flood control, the extraction of water from reservoirs, docks, lakes and rivers and the supply of water to landscape and water features. The sump pump range is available with or without a float switch and allows for free passage of solids up to 33 mm. The L Series submersible water pump is available with motors up to 11Kw and is able to pump up to 480m³/hr. The pumps can be customised to fit specifications.

  • Drainage of water, water extraction and supply of water
  • Free passage of solids up to 33mm
  • Low vibration due to axial and mix flow design
  • Available with or without a float switch
  • Aluminium Bronze Impeller
  • Sacrificial anode for brine applications
  • Pump manufactured with heavy duty housing, cable leads are isolated by hardened epoxy for water proofing, double mechanical seal
  • Available to be customised to fit specifications
  • 230v and three phase 50Hz / 60Hz motors available
  • L-405A - 0.4Kw, 1-3 phase, 50-60Hz motor. 90/100mm outlet, 1.5M max Head, 42m³h. 10mm free passage.
  • L-41A - 0.75Kw, 1-3 phase, 50-60Hz motor. 90/100mm outlet, 3M max Head, 42m³h. 10mm free passage.
  • L-62A - 1.5Kw, 3 phase, 50-60Hz motor. 150mm outlet, 2M max Head, 120m³h. 20mm free passage.
  • L-63A - 2.2Kw, 3 phase, 50-60Hz motor. 150mm outlet, 2.5M max Head, 120m³h. 20mm free passage.
  • L-200A - 5.5Kw, 3 phase, 50-60Hz motor. 200mm outlet, 4M max Head, 210m³h. 22mm free passage.
  • L-250A - 7.5Kw, 3 phase, 50-60Hz motor. 250mm outlet, 4M max Head, 330m³h. 22mm free passage.
  • L-300A - 11Kw, 3 phase, 50-60Hz motor. 250/300mm outlet, 4.5M max Head, 420m³h. 23mm free passage.
  • L-1220 - 15Kw, 3 phase, 60Hz motor. 300mm outlet, 6M max Head, 480m³h. 33mm free passage.
BRONZE
ALBC3
CAST IRON STAINLESS STEEL AISI 316
X5CrNiMO 18 10
CASINGX
IMPELLERX
SHAFTX
