HCP S/S Series Submersible Pump

Waste Water Pump

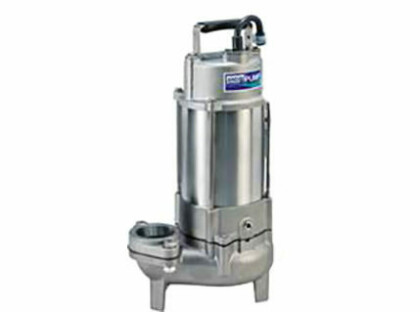

HCP S/S Series Submersible Pump
Flow Rate Up to 108M³H
Max Head (Pressure) Up to 40M
Outlet Sizes 50-100mm
Max Temperature 40°c
Free Passage 50mm


Flow Rate Up to 108M³H
Max Head (Pressure) Up to 40M
Outlet Sizes 50-100mm
Max Temperature 40°c
Free Passage 50mm

The HCP SS/SF Series Submersible Pump is a stainless steel sump pump designed for the drainage of water for pharmaceutical, chemical, metal processing factories and sanitary sewer drainage for residential properties. The submersible water pump range, which can be customised to fit specifications, is available with an optional float switch and is able to handle solids of up to 50mm in size. The SS/SF Series wastewater pump is available with motors up to 7.5Kw and can achieve flow rates up to 108m³/hr.

  • Drainage of waste water and sanitary sewer drainage
  • Free passage of solids up to 50mm
  • Available with or without a float switch
  • Full stainless steel
  • Viton O Rings used as standard
  • Fitted with dry motor, double mechanical seals, Auto-cut protector, acid resistant Silicon carbide seals
  • Can be customised to fit specifications
  • 230v and 3 phase 50Hz / 60Hz motor options
  • SS-05A - 50mm Outlet, 7M max head, 7.2m³h, 10mm free passage. 0.4Kw, 50-60Hz, 1/3 phase motor.
  • SS-21A - 50mm Outlet, 10M max head, 10.2m³h, 10mm free passage. 0.75Kw, 50-60Hz, 1/3 phase motor.
  • SF-05AU - 50mm Outlet, 6M max head, 9m³h, 35mm free passage. 0.4Kw, 50-60Hz, 1/3 phase motor.
  • SF-21AU - 50mm Outlet, 8M max head, 12m³h, 35mm free passage. 0.75Kw, 50-60Hz, 1/3 phase motor.
  • 80SFU21.5 - 80mm Outlet, 8.5M max head, 24m³h, 50mm free passage. 1.5Kw, 50-60Hz, 3 phase motor.
  • 80SFU22.2 - 80mm Outlet, 13M max head, 24m³h, 50mm free passage. 2.2Kw, 50-60Hz, 3 phase motor.
  • 80SFU23.7 - 80mm Outlet, 17.5M max head, 30m³h, 50mm free passage. 3.7Kw, 50-60Hz, 3 phase motor.
  • 80SFU25.5 - 80mm Outlet, 21M max head, 36m³h, 50mm free passage. 5.5Kw, 50-60Hz, 3 phase motor.
  • 80SFU27.5 - 80mm Outlet, 26M max head, 36m³h, 50mm free passage. 7.5Kw, 50-60Hz, 3 phase motor.
  • 80SFP21.5 - 80mm Outlet, 8.5M max head, 36m³h, 35mm free passage. 1.5Kw, 50-60Hz, 3 phase motor.
  • 80SFP22.2 - 80mm Outlet, 13M max head, 36m³h, 35mm free passage. 2.2Kw, 50-60Hz, 3 phase motor.
  • 80SFP23.7 - 80mm Outlet, 20.5M max head, 36m³h, 32mm free passage. 3.7Kw, 50-60Hz, 3 phase motor.
  • 80(100)SFP25.5 - 80mm Outlet, 28M max head, 36m³h/ 100mm Outlet, 21.5M max head, 60m³h. 30mm free passage. 5.5Kw, 50-60Hz, 3 phase motor.
  • 80(100)SFP27.5 - 80mm Outlet, 36M max head, 36m³h/ 100mm Outlet, 29.5M max head, 60m³h. 30mm free passage. 7.5Kw, 50-60Hz, 3 phase motor.
STAINLESS STEEL AISI 316
X5CrNiMO 18 10
CASINGX
IMPELLERX
SHAFTX
