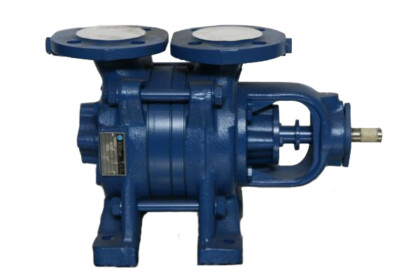

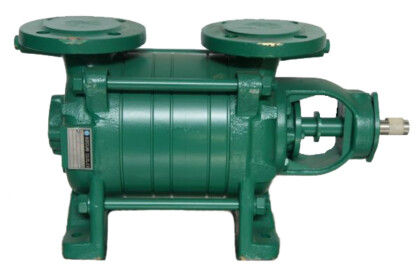

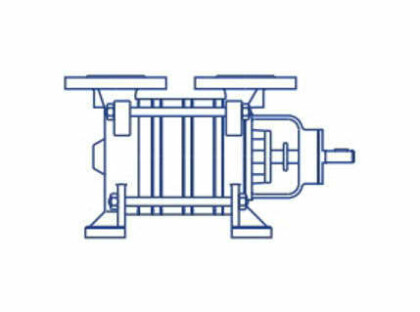

Azcue BR Long Coupled Side Channel Pump

Circulating & Sea Water Cooling Pump

Azcue BR Long Coupled Side Channel Pump
Azcue BR Long Coupled Side Channel Pump
Azcue BR Long Coupled Side Channel Pump
Flow Rate Up to 45M³H
Max Head (pressure) Up to 225M
Outlet Sizes DN25 – DN65
Max Temperature 130°C


Flow Rate Up to 45M³H
Max Head (pressure) Up to 225M
Outlet Sizes DN25 – DN65
Max Temperature 130°C

The Azcue BR Side Channel Pump is the long coupled equivalent to the MO close coupled pump. This is a larger, robust pump, multistage in design, which gives it very high pressure/suction capabilities whilst having low flow. This makes it ideal for applications such as pressure boosting and water supply when there is quite a lot of demand on the supply at a time. By nature, these liquid ring pumps can handle up to 50% gas content, making the BR side channel pump ideal for condensate extraction.

The Azcue BR horizontal multistage pump has a back pull out design, allowing the motor to be removed without having to remove the entire pump from the installation, saving time and effort when maintenance is required. Being long coupled, the BR liquid ring pump is easy to maintain as you can get to the pump head without removing the motor first, and is more durable for continuous use thanks to its additional bearings in the pump head to share the strain of operation

These Azcue pumps have two separate shafts in the pump head and motor meaning that if there is an issue with one, there is no need to replace it all; a benefit over alternative brands that have one continuous shaft from head to motor.

For more information on the working principle of side channel pumps, view our guide here

Features of the BR Series Liquid Ring Pump:

  • Long coupled multistage side channel pump
  • Pump manufactured in Spain
  • Marine type approved by all classification societies
  • Can handle up to 50% entrained air content
  • Available in cast iron, 316 stainless steel and bronze for seawater
  • Low NPSH
  • Horizontal orientation
  • Back pull out design for simple maintenance
  • Separate shafts in the pump and motor
  • Additional bearings to share the strain of operation
  • Clockwise or anticlockwise rotation
  • Mechanical seal or gland packing
  • Self priming design
  • 230v, three phase 50Hz/60Hz motors available. IP55 as standard.



CAST IRON
GG25
BRONZE
G-Cusn5ZnPb (Rg5)
BRONZE
G-CusN7Znpb
BRONZE
G-CUA110Ni
STAINLESS STEEL AISI 316
X5CrNiMO 18 10
TAINLESS STEEL AISI 431
X22CrNi17
CASINGXXX
IMPELLERXX
SHAFTX
DIFFUSERXXX

The BR Long Coupled Side Channel Pump is manufactured by Azcue Pumps. As the official UK Agent of Azcue Pumps, Castle Pumps are a leading Bombas Azcue supplier in the UK with unrivalled technical knowledge. Azcue Pumps are a European manufacturer with over 100 years’ experience in type approved pumps for marine and offshore applications. Today their pumps are installed in more than 10,000 vessel builds. Whilst originally developed for the marine market, Azcue Pumps’ reliability in applications that depend upon the safety and operation of a ship saw them become a desirable product in industrial applications involving water, fuels and lubricants.

One of the key benefits of the BR liquid ring pump like the other models in the Azcue range, is that is benefits from interchangeable parts for reduced on board stockholding. We guarantee supply of spares for 15 years from model discontinuation for long term pump servicing, saving the user from having to prematurely replace a pump that just needs maintenance.

Azcue BR multistage side channel pump are cast, machined and assembled at their foundry in Spain. Each pump is manufactured to order and designed to fit your process, resulting in greater efficiency and lower overall lifetime cost in terms of wear and energy consumption. Before leaving the factory, pumps are individually tested to confirm performance meets the requirements set out in your enquiry.

Like centrifugal pumps, side channel pumps have narrow tolerances that make them suited to only clean, low viscosity fluid free from solids. However, their uses do vary. Firstly, side channel pumps can handle high temperature fluids that are pumped close to boiling point and can pump fluids that contain up to 50% gas content with little interruption to fluid flow. Their higher pressure capabilities also mean that it can transfer fluid over long distances or through narrow pipework easier than an equivalent centrifugal pump. This makes the Azcue BR liquid ring pump ideal for the below applications:

Marine Applications:Industrial Applications:
  • Desalination/reverse osmosis pump
  • Boiler feed
  • Condensate extraction
  • Fresh water & sea water cooling pump
  • General sea water service
  • Aquaculture recirculation systems
  • Low viscosity fuel and lubrication transfer
  • Condensate extraction
  • Boiler feed
  • Closed loop HVAC circulating & cooling tower pumps
  • General water transfer, supply and service
  • Water pressure boosting pump
  • Swimming pool recirculation systems
  • Low viscosity fuel and lubrication transfer
