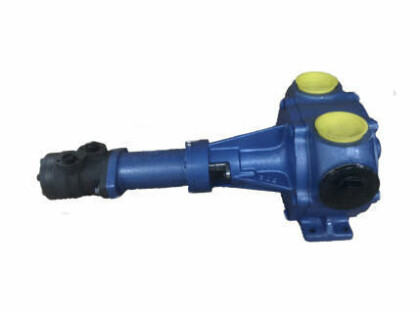

Bombas Trief Rotary Piston Pump

Reverse Osmosis & Shear Sensitive Pump

Bombas Trief Rotary Piston PumpBombas Trief Rotary Piston PumpBombas Trief Rotary Piston Pump
Flow Rate Up to 64m³/hr
Max Head (pressure) Up to 5 bar
Max Temperature 300°C
Maximum Viscosity 200000 Cst
Inlet/Outlet From 3/8” to 6“


Flow Rate Up to 64m³/hr
Max Head (pressure) Up to 5 bar
Max Temperature 300°C
Maximum Viscosity 200000 Cst
Inlet/Outlet From 3/8” to 6“

The Bombas Trief range of rotary piston pumps are designed for pumping a wide range of products from low to high viscosities. Reciprocating piston pumps have very high suction capability and maintain high volumetric efficiency regardless of the viscosity of the medium being pumped. The pumping action of a rotary piston pump assures that the nature of the product is not altered during pumping, which means that it is particularly excellent at handling shear sensitive products. The most common applications for this Bombas Trief pump includes thermal oils, vegetable oils, alcohols, gas oils, fuels, asphalt, paints, glues, resins, edible oils, juices and chocolates.

  • High suction capability
  • High volumetric efficiency regardless of viscosity
  • Compatible with a wide range of products
  • Viscosity up to 200000 Cst

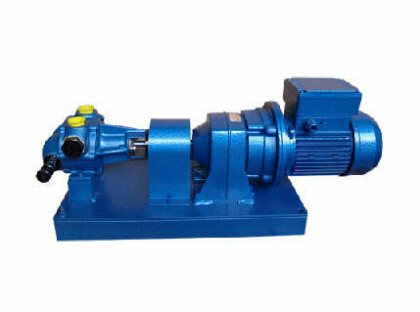

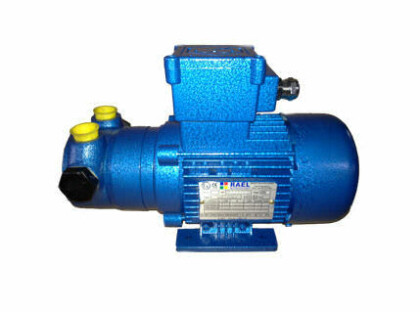

  • Various motor options; v-belt, close coupled, long coupled with gear reducer.
  • Robust
  • 230V, three phase 50hz/60hz motors available.
  • ATEX approved
  • Suitable for thermal oils including Marlotherm, Duratherm, Paratherm, Multitherm, Mobiltherm and Dowtherm
  • ACC – Bypass head for regulating flow and pressure
  • ACP - Chamber head to heat/cool pumped product
  • ACCP - Bypass head for regulating flow and pressure, chamber head to heat/cool pumped product
  • AX – Fixed head meaning flow and pressure can’t be regulated
  • AXP - Fixed head meaning flow and pressure can’t be regulated , chamber head to heat/cool pumped product

The Bombas Trief Rotary Piston Pumps are available with the following material options:

Cast Iron GG-20NI-Resist Cast IronAISI-316 Stainless SteelBronzePolypropyleneCast IronGG-40F-114
CasingXXX
PistonXXXX
ShaftXX
RotorXXXXX
Rotor CoverXXX
