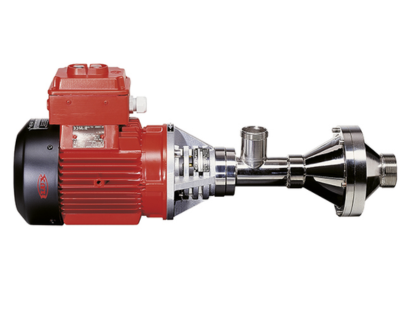

Flux F620 S-30 Centrifugal Horizontal Immersion Pump

Black & Grey Water Pump

Flux F620 S-30 Centrifugal Horizontal Immersion Pump
Flow Rate Up to 23m³/hr
Max Head Up to 12m liquid column
Max Temperature 100°C
Immersion Lengths 300 – 3000 mm in steps of 100 mm


Flow Rate Up to 23m³/hr
Max Head Up to 12m liquid column
Max Temperature 100°C
Immersion Lengths 300 – 3000 mm in steps of 100 mm

The Flux F620 S-30 Horizontal Centrifugal Immersion Pumps are designed for transferring low flammable liquids from a container or tank, with carry handles available to make it portable. This range of immersed centrifugal pumps is fitted with mechanical seals in ceramic oxide and FKM o- rings. The mechanical seal ensures that the fluid is kept away from the bearings and upper pump shaft enhancing the life span of the bearings.

  • Horizontal centrifugal immersion pump
  • Fitted with an open conical impeller and a ceramic oxide mechanical seal with FKM O-rings.
  • Stainless steel impeller upon request.
  • Suitable for fluids with a viscosity up to 2500 mPas (cP).
  • Liquid is never in contact with the bearings.
  • Flexible coupling pump connection
  • Available with a wide range of three phase motors from 0.75 to 4.0 kW
  • Motors available include jet proof to IP55 and explosion proof to ATEX
  • Thread connection on both suction and discharge side.
  • Base plate available for horizontal applications.
  • Carrying handles available for portable applications

The Flux F620 S-30 Series Centrifugal Immersion Pumps are available with the following material options:

Ceramic Oxide316 Ti (S)PolypropyleneFKM
Inner TubeX
Outer TubeX
SealX
ImpellerXX
O-rings
X
