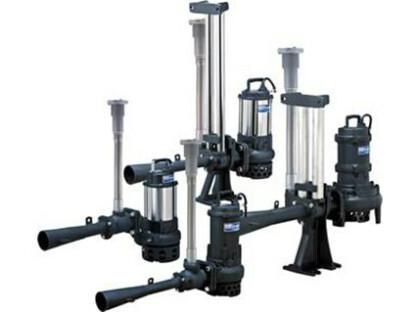

HCP JF Series Ejector Submersible Pump

Aerator Pump

HCP JF Series Ejector Submersible Pump
Flow Rate Up to 160M³H
Max Head (pressure) Up to 5M
Outlet Sizes 25-50mm
Max Temperature 40°c
Free Passage 35mm


Flow Rate Up to 160M³H
Max Head (pressure) Up to 5M
Outlet Sizes 25-50mm
Max Temperature 40°c
Free Passage 35mm

The HCP JF/JFN/JP Series Submersible Pump range is an ejector sump pump designed for producing water current in fountain pools and water tanks to prevent the build up of decay, to supply oxygen in water tanks and water tanks. The submersible water pump, which is also known as an aerator pump, can come with or without a float switch and allows for free passage of solids up to 35mm. The JF Series aerator pump is available with motors up to 5.5Kw and a flow rate of up to 160m³/hr. The pumps can be customised to fit specifications.

  • Producing water current and supplying oxygen (aeration)
  • Free passage of solids up to 35mm
  • Available with or without a float switch
  • A mixed chamber design to increase oxygen supply
  • Guide rail system available
  • Pumps can be customised to fit specifications.
  • 50 Hz/60Hz motors available
  • JF-21 - 0.75Kw, 50-60Hz motor. 24m³h. 20mm free passage.
  • JF-32 - 1.5Kw, 60Hz motor. 40m³h. 20mm free passage.
  • JF-32T - 1.5Kw, 50-60Hz motor. 48m³h. 20mm free passage.
  • JF-33 - 2.2Kw, 50-60Hz motor. 60m³h. 20mm free passage.
  • JF-35 - 3.7Kw, 60Hz motor. 66m³h. 20mm free passage.
  • JP-21.5 - 1.5Kw, 50-60Hz motor. 60m³h. 20mm free passage.
  • JP-22.2 - 2.2Kw, 50-60Hz motor. 66m³h. 20mm free passage.
  • JP-42.2 - 2.2Kw, 50-60Hz motor. 66m³h. 35mm free passage.
  • JP-43.7 - 3.7Kw, 50-60Hz motor. 95m³h. 35mm free passage.
  • JP-45.5 - 5.5Kw, 50-60Hz motor. 126m³h. 35mm free passage.
CAST IRONSTAINLESS STEEL AISI 316
X5CrNiMO 18 10
CASINGX
IMPELLER X
SHAFTX
