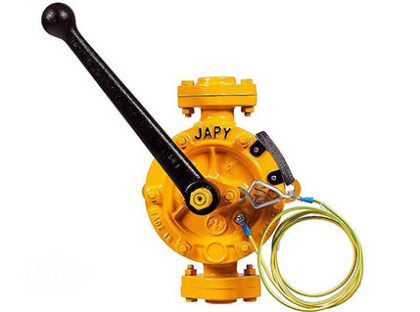

Japy AT ATEX Semi-Rotary Hand Pump
Fuel Transfer Pump & Lubricant Transfer Pump
| Key Specifications | |
|---|---|
| Max Flow Rate | 33lpm |
| Max Head | 15M |
| Max Temperature | 60°C |
| Max Viscosity | 200 cP |
| Solids | 0mm |
| Size | ½” to 1” |
The Japy Unlined Semi-Rotary Hand Pump, is a manual pump designed for pumping and transferring diesel fuel, oil, petrol, water, solvents and hydrocarbons. The Hand Pump complies with ATEX directive 94/9/EC and carries an ATEX classification of II 2 GD IIC T4 (Tf<120°C) for use in potentially explosive environments. The ATEX Pump can achieve a flow rate up of to 2m³/hr and can weigh up to 8.5Kg.
- The Manual Pump includes a 300 micron stainless steel filter included for protection from outside intrusions.
- 2 metre grounding cable and clip included for earthing.
| CAST IRON | BRASS | PTFE BRAID | |
| BODY/COVER & LEVER | X | ||
| MECHANISM | X | ||
| SEAL | X |
