Raasm Air Operated Grease Pump

Grease Pump

Raasm Air Operated Grease PumpRaasm Air Operated Grease PumpRaasm Air Operated Grease PumpRaasm Air Operated Grease Pump
Flow rate Up to 4400g/min
Max Head (pressure) Up to 550 bar
Max Temperature 60°C
Maximum Viscosity Greases medium – high viscosity
Outlet Sizes Available 3/8” – 1/2”


Flow rate Up to 4400g/min
Max Head (pressure) Up to 550 bar
Max Temperature 60°C
Maximum Viscosity Greases medium – high viscosity
Outlet Sizes Available 3/8” – 1/2”

The Raasm Air Operated Grease Pumps are the ideal solution for the transferring of medium to high viscosity grease at high pressure over a long distance. This air operated pump's double reciprocating action ensures a continuous flow at high pressures. Typically used as drum pumps, the Raasm pneumatic grease pump range are suitable for both central fixed installations and mobile systems, available with differing lengths of riser tubes to suit drums from 16kg to 220kg. These barrel pumps can also be immersed within a tank.

  • Pneumatic grease pump
  • Varying lengths available of suction tube to suit 16kg to 220kg drums
  • Air consumption between 6-8 bar
  • Follower plates available to enable all grease to be extracted from inner drum wall ensuring maximum content extraction which automatically works due to vacuum created by pump
  • Also available as part of a mobile unit complete with hosing and Flowmeter or as a separate wall mounted pump with suction hose.
  • IMPA Codes available in the downloads section
  • Grease Pump Only:

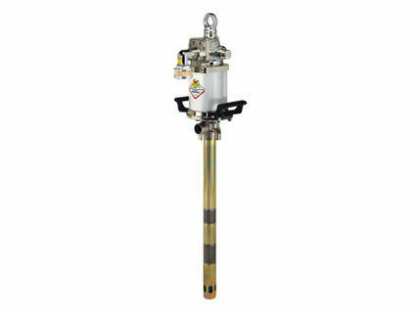

  • 1200 Series 40:1 ratio – RL116F/401 – for use with 180kg barrel. Capacity 10000g/min.

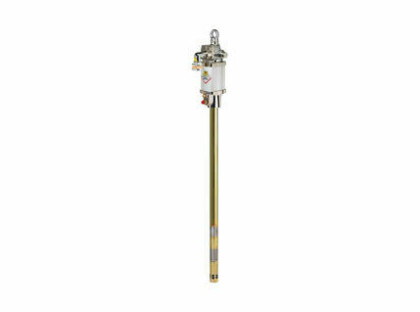

  • 900 Series 45:1 ratio – RL91F/451 – for use with 180kg barrel. Capacity 4400g/min.
  • 900 Series 45:1 ratio – 4400g/min

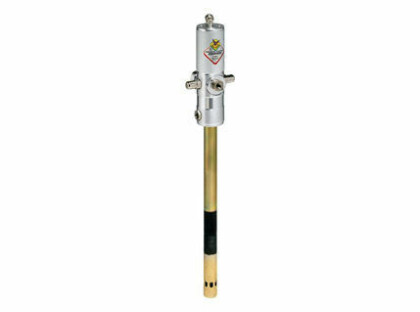

  • 600 Series 50:1 ratio – 1500g/min
  • 600 Series 50:1 ratio – 62041 – for use with 12.5kg keg. Capacity 1500g/min.
  • 600 Series 50:1 ratio – 62048 – for use with 20/30kg keg. Capacity 1500g/min.
  • 600 Series 50:1 ratio – 62074 – for use with 50kg drum. Capacity 1500g/min.
  • 600 Series 50:1 ratio – 62095 – for use with 180kg barrel. Capacity 1500g/min.
  • 600 Series 65:1 ratio – 63074 – for use with 50kg keg. Capacity 1800g/min.
  • 600 Series 65:1 ratio – 63095 – for use with 180kg keg. Capacity 1800g/min.

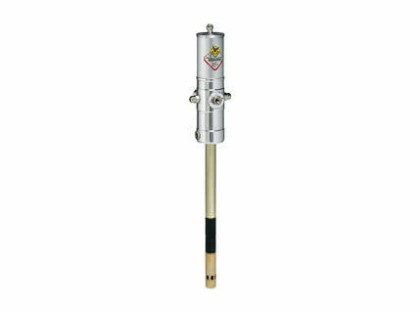

  • 700 Series 65:1 ratio – 1900g/min
  • 900 Series 70:1 ratio – RL91C/701 – for use with 180kg barrel. Capacity 3000g/min.
  • 1500 Series 70:1 ratio – RL151F/701 – for use with 180kg barrel. Capacity 7000g/min.
  • 1200 Series 75:1 ratio – 4400g/min
  • 1200 Series 75:1 ratio – RL116F/751 – for use with 180kg barrel. Capacity 4400g/min.

The Raasm range of air operated grease pumps have the following materials:

AluminiumCarbon Steel
Suction TubeX
Suction Tube Upper BodyX
