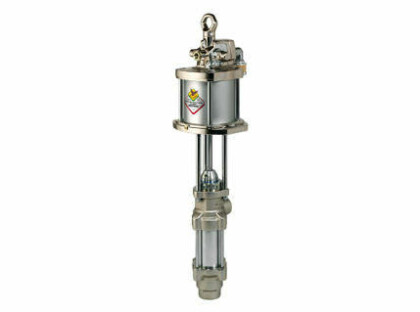

Raasm Air Operated High Flow Oil Pump

Lubricant Transfer Pump

Raasm Air Operated High Flow Oil Pump
Flow Rate Up to 110 l/min
Max Head (Pressure) Up to 64 Bar
Max Temperature 60 °C
Max Viscosity Oils medium – high viscosity
Outlet Sizes F 1. 1/2 “


Flow Rate Up to 110 l/min
Max Head (Pressure) Up to 64 Bar
Max Temperature 60 °C
Max Viscosity Oils medium – high viscosity
Outlet Sizes F 1. 1/2 “

The Raasm Air Operated High Flow Industrial Oil Pumps are ideal for transferring medium or high viscosity oils, lubricants or similar fluids at high pressures over medium to long distances. The high quality of each of this oil pumps components ensures long lasting and reliable operation even in extreme conditions. These air operated pumps also guarantee high flow performance in capacity and operating pressure. Optional Viton seals are available for pumping industrial and chemical fluids, these barrel pumps are suitable for both drums and tanks central fixed installations.

  • Varying lengths available of suction tube to suit a variety drums and tank sizes
  • Max. air consumption of 8 bar
  • Viton seals available, ideal for pumping industrial chemical fluids
  • IMPA Codes available in the downloads section
  • 900 series 2:1 Ratio 95 l/min
  • 1200 Series 3:1 Ratio 100 l/min
  • 1500 Series 4:1 Ratio 110 l/min
  • 1500 Series 6:1 Ratio 80 l/min
  • 1800 Series 5:1 Ratio 90 l/min
  • 1800 Series 8: 1 Ratio 65 l/min

The Raasm range of high flow air operated oil pumps has the following materials:

Carbon SteelPolyurethane/ PUViton
SealsXX
Suction TubeX
Sucrion Tube Upper BodyX
