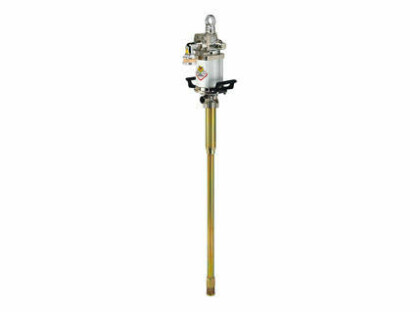

Raasm Air Operated Oil Pump

Barrel & Grease Pump

Raasm Air Operated Oil Pump
Flow Rate Up to 45 l/min
Max Head (pressure) Up to 142 Bar
Max Temperature Up to 60 °C
Maximum Viscosity Oils medium – high viscosity
Outlet Sizes F 3/4 “


Flow Rate Up to 45 l/min
Max Head (pressure) Up to 142 Bar
Max Temperature Up to 60 °C
Maximum Viscosity Oils medium – high viscosity
Outlet Sizes F 3/4 “

The Raasm range of air operated oil pumps are the best option for transferring medium or high viscosity oils, lubricants or similar fluids at high pressures over a long distance. Continuous and constant flow at high pressures is guaranteed due to this air operated pumps double reciprocating action. This range of oil pumps are ideal for every need, very effective in transfer or distribution systems where several dispensing points are required. These barrel pumps are suitable for both central fixed and mobile systems with a variety of suction tube lengths to suit drums from 50 to 220 kg. Also suitable for tanks installations where the drum pump is immersed.

  • Varying lengths available of suction tube to suit 16kg to 220kg drums
  • Max. air consumption of 8 bar
  • Also available as part of a mobile unit complete with hosing and Flow meter or as a separate wall mounted pump with suction hose
  • Available in both integral and flanged connections
  • IMPA Codes available in the downloads section
  • 500 Series 1:1 Ratio 35l/min – 26090 – stub pump with bung adaptor.
  • 500 Series 1:1 Ratio 35l/min – 26094 – for 205L barrel with bung adaptor.
  • 500 Series 1:1 Ratio 35l/min – 26095 – for 4’0” tank with bung adaptor.
  • 600 Series 1:1 Ratio 23l/min – 33070 – stub pump (use with wall bracket RL33115)
  • 600 Series 1:1 Ratio 23l/min – 33094 – for 205L barrel with bung adaptor.
  • 650 Series 1:1 Ratio 40l/min – 33160 – stub pump (use with wall bracket RL33115)
  • 650 Series 1:1 Ratio 40l/min – 33194 – for 205L barrel with bung adaptor.
  • 500 Series 3:1 Ratio 20l/min – 35060 – stub pump with bung adaptor.
  • 500 Series 3:1 Ratio 20l/min – 35094 – for 205L barrel with bung adaptor.
  • 500 Series 3:1 Ratio 20l/min – 35095 – for 4’0” tank with bung adaptor.
  • 600 Series 3:1 Ratio 14l/min – 35160 – stub pump with bung adaptor.
  • 600 Series 3:1 Ratio 14l/min – 35173 – for 60L barrel with bung adaptor.
  • 600 Series 3:1 Ratio 14l/min – 35194 – for 205L barrel with bung adaptor.
  • 600 Series 3:1 Ratio 14l/min – 35104 – for 4’0” tank with bung adaptor.
  • 650 Series 5:1 Ratio 18l/min – 36060 – stub pump with bung adaptor.
  • 650 Series 5:1 Ratio 18l/min – 36073 – for 60L barrel with bung adaptor.
  • 650 Series 5:1 Ratio 18l/min – 36094 – for 205L barrel with bung adaptor.
  • 650 Series 5:1 Ratio 18l/min – 3604 – for 4’0” tank with bung adaptor.
  • 900 Series 5:1 Ratio 45 l/min
  • 900 Series 7:1 Ratio 30l/min – RL90C/71 – heavy duty stub pump – see downloads for spec table.
  • 900 Series 7:1 Ratio 30l/min – RL91C/71 – heavy duty pump for 205L barrel – see downloads for spec table.
  • 900 Series 7:1 Ratio 30 l/min
  • 1200 Series 9:1 Ratio 45 l/min
  • 900 Series 11:1 Ratio 30 l/min
  • 1200 Series 12:1 Ratio 30 l/min
  • 1200 Series 18:1 Ratio 23 l/min

The Raasm range of air operated oil pumps has the following materials:

AluminiumCarbon Steel
Suction TubeX
Suction Tube Upper BodyXX
