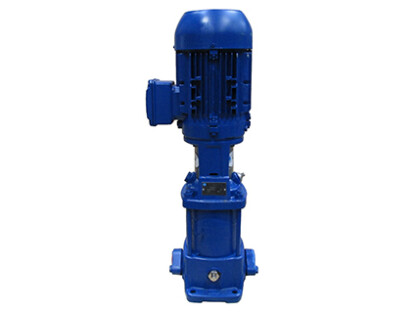

Azcue C Vertical Multistage Centrifugal Pump

Sea Water Cooling Pump & Fire Fighting Pump

Azcue C Vertical Multistage Centrifugal Pump
Flow Rate 40M³H
Max Head (Pressure) 200M
Max Temperature 120°C
Outlet Sizes DN 32–100

Flow Rate 40M³H
Max Head (Pressure) 200M
Max Temperature 120°C
Outlet Sizes DN 32–100

The Azcue C Multistage Centrifugal Pump is of vertical orientation with inline suction and discharge, ideal for installations where space is an issue. Thanks to its multiple impellers, this multistage pump has high pressure capabilities. Designed for the transfer of water and other clean, low viscosity fluids, this model of Azcue pump is ideal for water pressure boosting, circulation and transferring across long distances.

Thanks to its spacer coupling, maintenance of this vertical inline multistage pump is a lot simpler as it does not require the motor to be removed first. It also benefits from wear rings, which limit the wear caused to the casing and impellers.

  • Multistage centrifugal pump
  • Marine type approved by all classification societies
  • Compact vertical orientation for space saving
  • Inline suction and discharge
  • Available in cast iron and stainless steel
  • Casing wear rings to prolong casing and impeller life
  • 230v, three phase 50Hz/60Hz motors available. IP55 as standard.
  • Supplied flanged as standard
Marine Applications:Industrial Applications:
  • Desalination in reverse osmosis plants
  • Boiler feed pump
  • Condensate extraction pump
  • Sea water cooling pump
  • General sea water service
  • Aquaculture recirculation systems
  • Fire fighting
  • Condensate extraction pump
  • General water transfer, supply and service
  • Water pressure boosting pump
  • Boiler feed
  • Closed loop HVAC circulating & cooling tower pumps
  • Swimming pool recirculation systems
  • Irrigation

Key Benefits:


Material options for the Azcue C Multistage Centrifugal Pumps:

Cast IronStainless Steel AISI 304 Stainless Steel AISI 316
Pump Head X X X
Shaft X X
Impeller X X
Chamber X X
Sleeve X X
