Azcue TK Horizontal Multistage Centrifugal Pump

Water pressure boosting pump

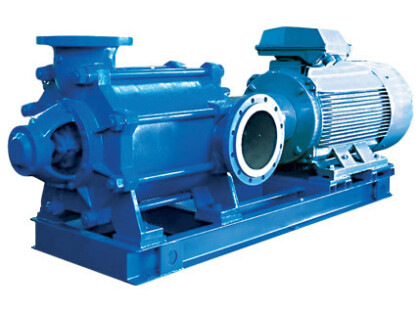

Azcue TK Horizontal Multistage Centrifugal Pump
Flow Rate Up to 800M³H
Max Head (pressure) Up to 400M
Outlet Sizes DN 20-300
Max Temperature 120°C


Flow Rate Up to 800M³H
Max Head (pressure) Up to 400M
Outlet Sizes DN 20-300
Max Temperature 120°C

The Azcue TK Horizontal Multistage Centrifugal Pump can achieve significantly higher pressures than single stage alternatives thanks to its multiple impellers. Designed for the transfer of water and other clean, low viscosity fluids, this model of Azcue pump is ideal for water pressure boosting, circulation and transferring across long distances.

Its long coupled design means that this multistage pump is easier to maintain as you can get to the pump head without removing the motor first. It is also more durable for heavy duty, continuous operation as it has two externally located, grease lubricated bearings to share the strain. Thanks to its wear rings which are to be periodically replaced, the more costly to replace casing and impellers are protected from wear.

This horizontal centrifugal pump is able to absorb vibrations better within the installation thanks to its flexible rather than rigid coupling. A further benefit of the TK centrifugal water pump is that its suction and discharge connections can be rotated in 90° stages at manufacture to suit existing pipework for easy retrofitting.

  • Long coupled, multistage centrifugal pump
  • Marine type approved by all classification societies
  • Horizontal orientation
  • Available in cast iron and stainless steel
  • Stage elements are sealed by o-rings
  • Suction and discharge connections can be rotated 90° at manufacture
  • Flexible rather than rigid coupling to help absorb vibrations
  • Twin heavy duty bearing for robust, continuous use
  • Soft packing as standard – mechanical seal upon request
  • With soft packing can handle 105°C, with mechanical can handle 120°C
  • Casing wear rings to prolong casing and impeller life
  • API682 seal available
  • Mounted on a base plate
  • 230v, three phase 50Hz/60Hz motors available. IP55 as standard.
  • Supplied flanged as standard
Marine Applications:Industrial Applications:
  • Desalination in reverse osmosis plants
  • Boiler feed water pump
  • Condensate extraction
  • Sea water cooling pump
  • General sea water service
  • Aquaculture recirculation systems
  • Fire fighting
  • Condensate extraction
  • General water transfer, supply and service
  • Water pressure boosting pump
  • Boiler feed
  • Closed loop HVAC circulating & cooling tower pumps
  • Swimming pool recirculation systems
  • Irrigation

Material options for the TK Multistage Centrifugal Pump:

Cast IronStainless SteelBronzeChromium SteelPTFEEPDM
Pump CasingXX
Radial ImpellerXXX
DiffuserXXX
Wear RingsXX
Suction/Delivery*XX
Shaft SleevesXX
ShaftXX
Soft PackingX
Mechanical SealX

*Exceeding 25 bar: Nodular Cast Iron or Carbon Steel
