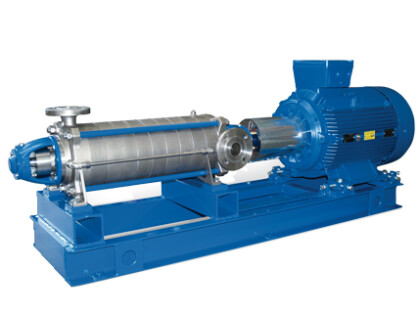

Azcue TKR Horizontal Multistage Centrifugal Pump

Water pressure boosting pump

Azcue TKR Horizontal Multistage Centrifugal Pump
Flow Rate Up to 500M³H
Max Head (pressure) Up to 600M
Outlet Sizes DN 32-150
Max Temperature 140°C

Flow Rate Up to 500M³H
Max Head (pressure) Up to 600M
Outlet Sizes DN 32-150
Max Temperature 140°C

The Azcue TKR Horizontal Multistage Centrifugal Pump is similar in design to the TK multistage pump with higher flow and pressure capabilities. Designed for the transfer of water and other clean, low viscosity fluids under higher head conditions thanks to its multiple impellers, this model of Azcue pump is ideal for water pressure boosting, circulation and transferring across long distances.

Its long coupled construction makes this multistage pump easier to maintain as you can get to the pump head without removing the motor prior. It is also more robust for continuous use as the shaft is supported by two external, oil lubricated bearings to share the strain. Thanks to its flexible coupling, this horizontal centrifugal pump is able to absorb vibrations within the installation.

A further benefit of the TKR centrifugal water pump is that its suction and discharge connections can be rotated in 90° stages at manufacture to suit existing pipework for easy retrofitting. It also benefits from wear rings, which limit the wear caused to the casing and impellers.

  • Long coupled, multistage centrifugal pump
  • Marine type approved by all classification societies
  • Horizontal orientation
  • Available in cast iron and stainless steel
  • Stage elements are sealed by o-rings
  • Suction and discharge connections can be rotated 90° at manufacture
  • Flexible rather than rigid coupling to help absorb vibrations
  • Twin heavy duty bearing for robust, continuous use
  • Soft packing as standard – mechanical seal upon request
  • API682 seal available
  • Casing wear rings to prolong casing and impeller life
  • Mounted on a base plate
  • 230v, three phase 50Hz/60Hz motors available. IP55 as standard.
  • Supplied flanged as standard
Marine Applications:Industrial Applications:
  • Desalination in reverse osmosis plants
  • Boiler feed pump
  • Condensate extraction pump
  • Sea water cooling pump
  • General sea water service
  • Aquaculture recirculation systems
  • Fire fighting
  • Condensate extraction pump
  • General water transfer, supply and service
  • Water pressure boosting pump
  • Boiler feed
  • Closed loop HVAC circulating & cooling tower pumps
  • Swimming pool recirculation systems
  • Irrigation

Material options for the TKR Multistage Pump:

Nodular Cast IronCast IronStainless SteelBronzeCarbon SteelChromium SteelPTFEEPDM
Pump CasingXX
Radial ImpellerXXX
Wear RingsXX
Suction CasingXXX
Delivery CasingXX
Shaft SleevesXX
Soft PackingX
Mechanical SealX
