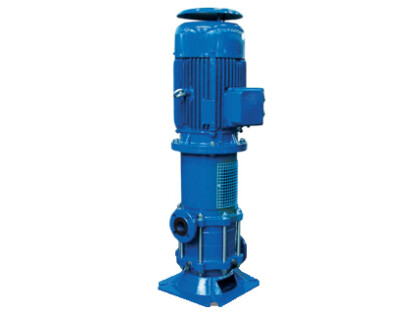

Azcue VTK Vertical Multistage Centrifugal Pump

Water pressure booster pump

Azcue VTK Vertical Multistage Centrifugal Pump
Flow Rate Up to 300M³H
Max Head (pressure) Up to 400M
Outlet Sizes DN 20-150
Max Temperature 120°C


Flow Rate Up to 300M³H
Max Head (pressure) Up to 400M
Outlet Sizes DN 20-150
Max Temperature 120°C

The Azcue VTK Multistage Centrifugal Pump, the vertical version of the TK, can achieve significantly higher pressures than single stage equivalents thanks to its multiple impellers. Designed for the transfer of water and other clean, low viscosity fluids, this model of Azcue pump is ideal for water pressure boosting, circulation and transferring across long distances.

Thanks to its spacer coupling, maintenance of this multistage pump is a lot simpler as it does not require the motor to be removed first.. It is also more durable for heavy duty, continuous operation as it has two bearings to share the strain. Supplied with wear rings which are designed to be periodically replaced, the more expensive to maintain casing and impellers are protected against wear.

A further benefit of the VTK vertical centrifugal pump is that its suction and discharge connections can be rotated in 90° stages at manufacture to suit existing pipework. This combined with its space saving, vertical orientation makes it ideal for retrofitting.

  • Multistage centrifugal pump
  • Spacer coupling for easier maintenance
  • Marine type approved by all classification societies
  • Vertical orientation for space saving
  • Available in cast iron and stainless steel
  • Stage elements are sealed by o-rings
  • Suction and discharge connections can be rotated 90° at manufacture
  • Back pull out design for simple maintenance
  • Twin heavy duty bearing for robust, continuous use
  • Mechanical seal as standard
  • API682 seal available
  • Casing wear rings to prolong casing and impeller life
  • 230v, three phase 50Hz/60Hz motors available. IP55 as standard.
  • Supplied flanged as standard
Marine Applications:Industrial Applications:
  • Desalination in reverse osmosis plants
  • Boiler feed pump
  • Condensate extraction pump
  • Sea water cooling pump
  • General sea water service
  • Aquaculture recirculation systems
  • Fire fighting
  • Condensate extraction pump
  • General water transfer, supply and service
  • Water pressure boosting pump
  • Boiler feed
  • Closed loop HVAC circulating & cooling tower pumps
  • Swimming pool recirculation systems
  • Irrigation

Material options for the VTK Multistage Vertical Centrifugal Pump:

 Cast IronStainless SteelBronzeChromium SteelVitonEPDM
Pump CasingXX
Radial ImpellerXXX
DiffuserXXX
Wear Rings XX
Suction/Delivery*XX
Shaft Sleeves X X
Shaft X X
Mechanical Seal     XX

*Exceeding 25 bar: Nodular Cast Iron or Carbon Steel
