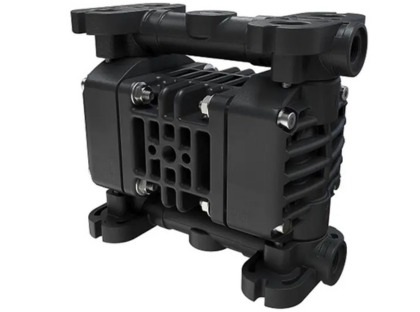

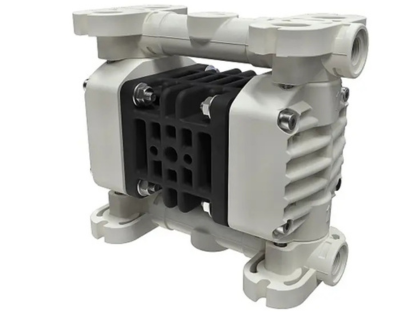

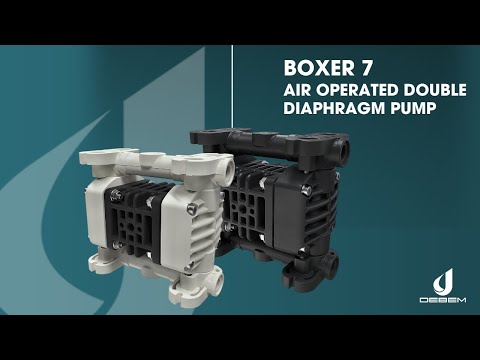

Debem Boxer Air Operated Diaphragm Pump

Debem Boxer Air Operated Diaphragm PumpDebem Boxer Air Operated Diaphragm PumpDebem Boxer Air Operated Diaphragm Pump
Flow Rate 17 - 900 l/min
Max Head (Pressure) Up to 80 M
Max Temperature 60ºC (PP) 95ºC (PVDF, ALU, AISI 316)
Max Viscosity Up to 50000 cP
Outlet Sizes G ½” F – G 3” F (DN 80)


Flow Rate 17 - 900 l/min
Max Head (Pressure) Up to 80 M
Max Temperature 60ºC (PP) 95ºC (PVDF, ALU, AISI 316)
Max Viscosity Up to 50000 cP
Outlet Sizes G ½” F – G 3” F (DN 80)

The Debem Boxer Air Operated Diaphragm Pump is a versatile and modular air driven positive displacement pump, designed to be a cost effective and leak free. The Boxer AODD pump is available in a multitude of material and build specifications and sizes, enabling it to be suited to almost any application. The Debem Boxer air operated double diaphragm pumps are suitable for demanding applications including highly humid environments and potentially explosive atmospheres. There are also food grade and sanitary versions of the Boxer AODD pumps for hygienic applications.

The Debem range of air diaphragm pumps benefit from a patented stall protection mechanism, which ensures that if there is a pressure imbalance the system will continue running without the pump stalling.

Downloads - Info Graphic.png

Read our AODD pump guide for more information on their working principle and applications they are typically suited to.

  • Available in PP, PVDF / ECTFE, Aluminium & Stainless Steel AISI 316
  • Suitable for use in potentially explosive atmospheres (ATEX Zones 1 & 2, II 2/2 GD c IIB T135ºC & II 3/3 GD c IIB T135ºC)
  • Can be submerged as well as surface mounted
  • Run dry capabilities
  • Self priming up to 6m
  • Actuated via a non-lubricated air system
  • Stall-free pneumatic motor/exchanger
  • Speed & flow rate can be adjusted via regulating air flow, whereas head can be adjusted via regulation of air supply pressure
  • Fine tuning of motor speed at a constant pressure.
  • Single or twin manifolds versions available
  • 3 suction & delivery port positions
  • Food Grade (FDA), known as the FoodBoxer and Sanitary Grade (3A), SaniBoxer, versions are available.
  • Stroke counter, batch controller, air regulator, foot valve, flange kits and anti-vibration feet all available as optional accessories
  • IMPA Codes available in the downloads section

Key Benefits:



The Debem Boxer Air Operated Diaphragm Pump is available in the following materials:

NOTE: Pumps can be supplied with single or double diaphragms
