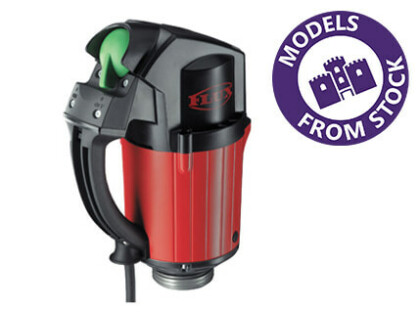

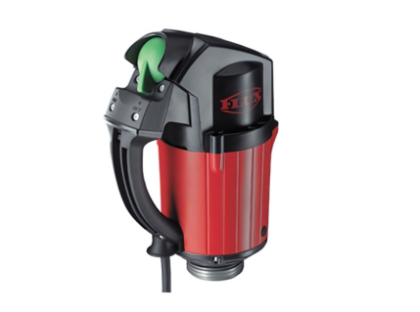

Flux F458 Commutator Motor

Flux F458 Commutator Motor


The FLUX F458 commutator motor features a robust and compact design with aluminium double shell housing, special corrosion resistant paint and low noise levels. The commutator F 458 motor is particularly suited for use in corrosive, vapour laden atmospheres where a Flux pump is being used. The delivery rate can be easily controlled by the infinitely variable speed control included in the switch knob. An extended service life is ensured by an improved ventilation system that provides optimal cooling. Models can contain the option of a no-volt release that prevents any unintentional re-starting of the motor after a voltage discontinuity.

The FLUX commutator motor F 458-1 is almost identical to the F 458 but features a considerably higher capacity of 700 watt. This model is ideally suited for use in applications that require a higher delivery rate, when transferring products with a medium viscosity or handling liquids with a higher density.

  • Protection class I in 240, 230 and 110v
  • Protection class III in 24 or 12v
  • Jet proofed according to IP 55
  • Available with or without no-volt release
  • 5 metre power cable and plug
  • For use with Flux pumps
  • 458 00 006 – 460w, 230v, 50Hz. No speed control. 5M power cable, plug and no-volt release.
  • 458 00 001 – 460w, 230v, 50Hz. No speed control. 5M power cable and plug. Without no-volt release.
  • 458 00 014 – 460w, 230v, 50Hz. No speed control. Without power cable and plug. With no-volt release.
  • 458 00 009 – 460w, 230v, 50Hz. No speed control. Without power cable and plug. Without no-volt release.
  • 458 00 022 – 460w, 230v, 50Hz. No speed control. 5M power cable. Without plug. With no-volt release.
  • 458 00 019 – 460w, 230v, 50Hz. No speed control. 5M power cable. Without plug. Without no-volt release.
  • 458 00 025 – 460w, 230v, 50-60Hz. No speed control. 5M power cable, plug and no-volt release.
  • 458 00 027 – 460w, 230v, 50Hz. With speed control. 5M power cable, plug and no-volt release.
  • 458 00 028 – 460w, 230v, 50Hz. With speed control. Without power cable and plug. With no-volt release.
  • 458 01 004 – 700w, 230v, 50Hz. No speed control. 5M power cable, plug and no-volt release.
  • 458 01 001 – 700w, 230v, 50Hz. No speed control. 5M power cable and plug. Without no-volt release.
  • 458 01 010 – 700w, 230v, 50Hz. No speed control. Without power cable and plug. With no-volt release.
  • 458 01 007 – 700w, 230v, 50Hz. No speed control. Without power cable and plug. Without no-volt release.
  • 458 01 018 – 700w, 230v, 50Hz. No speed control. 5M power cable. Without plug. With no-volt release.
  • 458 01 015 – 700w, 230v, 50Hz. No speed control. 5M power cable. Without plug. Without no-volt release.
  • 458 01 020 – 700w, 230v, 50-60Hz. No speed control. 5M power cable and plug. Without no-volt release.
  • 458 00 005 – 460w, 240v, 50Hz. No speed control. 5M power cable, plug and no-volt release.
  • 458 00 000 – 460w, 240v, 50Hz. No speed control. 5M power cable and plug. Without no-volt release.
  • 458 00 021 – 460w, 240v, 50Hz. No speed control. 5M power cable. Without Plug. With no-volt release.
  • 458 00 018 – 460w, 240v, 50Hz. No speed control. 5M power cable. Without plug. Without no-volt release.
  • 458 00 013 – 460w, 240v, 50Hz. No speed control. Without cable and plug. With no-volt release.
  • 458 00 008 – 460w, 240v, 50Hz. No speed control. Without cable and plug. Without no-volt release.
  • 458 01 003 – 700w, 240v, 50Hz. No speed control. 5M power cable, plug and no-volt release.
  • 458 01 000 – 700w, 240v, 50Hz. No speed control. 5M power cable and plug. Without no-volt release.
  • 458 01 017 – 700w, 240v, 50Hz. No speed control. 5M power cable. Without plug. With no-volt release.
  • 458 01 014 – 700w, 240v, 50Hz. No speed control. 5M power cable. Without plug. Without no-volt release.
  • 458 01 009 – 700w, 240v, 50Hz. No speed control. Without power cable and plug. With no-volt release.
  • 458 01 006 – 700w, 240v, 50Hz. No speed control. Without power cable and plug. Without no-volt release.
  • 458 00 026 – 460w, 120v, 60Hz. No speed control. 5M power cable and plug. Without no-volt release. COF CSA ENC 3 TP protection class.
  • 458 00 021 – 700w, 120v, 60Hz. No speed control. 5M power cable and plug. Without no-volt release. COF CSA ENC 3 TP protection class.
  • 458 00 007 – 460w, 110v, 50Hz. No speed control. 5M power cable, plug and no-volt release.
  • 458 00 023 – 460w, 110v, 50Hz. No speed control. 5M power cable. Without plug. With no-volt release.
  • 458 00 015 – 460w, 110v, 50Hz. No speed control. Without power cable and plug. With no-volt release.
  • 458 00 002 – 460w, 110v, 50-60Hz. No speed control. 5M power cable and plug. Without no-volt release.
  • 458 00 020 – 460w, 110v, 50-60Hz. No speed control. 5M power cable. Without plug. Without no-volt release.
  • 458 00 010 – 460w, 110v, 50-60Hz. No speed control. Without power cable and plug. Without no-volt release.
  • 458 01 005 – 700w, 110v, 50Hz. No speed control. 5M power cable, plug and no-volt release.
  • 458 01 019 – 700w, 110v, 50Hz. No speed control. 5M power cable. Without plug. With no-volt release.
  • 458 01 011 – 700w, 110v, 50Hz. No speed control. Without power cable and plug. With no-volt release.
  • 458 01 002 – 700w, 110v, 50-60Hz. No speed control. 5M power cable and plug. Without no-volt release.
  • 458 01 016 – 700w, 110v, 50-60Hz. No speed control. 5M power cable. Without plug. Without no-volt release.
  • 458 01 008 – 700w, 110v, 50-60Hz. No speed control. Without power cable and plug. Without no-volt release.
  • 458 00 003 – 410w, 24v, DC. No speed control. 5M power cable. Without plug. Without no-volt release.
  • 458 00 011 – 410w, 24v, DC. No speed control. Without power cable and plug. Without no-volt release.
  • 458 00 004 – 230w, 12v, DC. No speed control. 5M power cable. Without plug. Without no-volt release.
  • 458 00 012 – 230w, 12v, DC. No speed control. Without power cable and plug. Without no-volt release.
