Flux F460 Commutator Motor

Flux F460 Commutator Motor

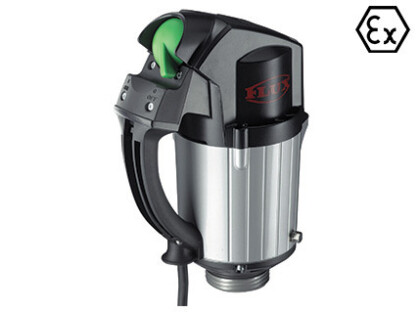

The FLUX F460 commuter motor is explosion proof tested and certified according to ATEX Directive 94/9/EC, EC-Type-Examination certificate PTB 10 ATEX 1053 X. The commutator motor F 460 Ex features a robust and compact design with aluminium double shell housing and low noise levels. The delivery rate is easily controlled by the infinitely variable speed control included in the switch knob. To ensure the motor has an extended service life and to provide optimal cooling, it includes an improved ventilation system. The integral no-volt release provides extra safety measures by preventing unintentional re-starting after a voltage discontinuity (Dependent upon part No.).

The FLUX commutator motor F 460-1 Ex is identical to the F 460 Ex but has a higher capacity of 700 watt. This model is ideal for Flux pump applications that require a higher delivery rate, when transferring higher viscosity liquids or when handling liquids with a higher density.

  • Commutator motor explosion proof to II 2 G Ex d e IIC T6/T5 Gb
  • Protection class I in 110, 230, or 240v.
  • Protection class III in 42, 24 or 12v.
  • Jet proof according to IP 55.
  • 230-700W, 12-240v, CC-50Hz.
  • Available with or without no-volt release
  • 5 metre power cable and plug
  • For use with Flux pumps
  • 460 00 006 - 460w, 230v, 50Hz. No speed control. 5M power cable, plug and no-volt release.
  • 460 00 001 - 460w, 230v, 50Hz. No speed control. 5M power cable, plug, without no-volt release.
  • 460 00 014 - 460w, 230v, 50Hz. No speed control. Without power cable and plug, with no-volt-release.
  • 460 00 009 - 460w, 230v 50Hz. No speed control. Without power cable and plug, without no-volt release.
  • 460 00 024 - 460w, 230v, 50Hz. No speed control. 5M power cable. Without plug. With no-volt release.
  • 460 00 021- 460w, 230v, 50Hz. No speed control. 5M power cable. Without plug. Without no-volt release.
  • 460 00 026 - 460w, 230v, 50-60Hz. No speed control. 5M power cable, plug, without no-volt release.
  • 460 00 028 - 460w, 230v, 50Hz. With speed control. 5M power cable, plug and no-volt release.
  • 460 00 035 - 460w, 230v, 50Hz. With speed control. 5M power cable. Without plug. With no-volt release.
  • 460 00 029 - 460w, 230v, 50Hz. With speed control. Without power cable and plug. With No-volt release.
  • 460 00 005 - 460w, 240v, 50Hz. No speed control. 5M power cable, plug and no-volt release.
  • 460 00 000 - 460w, 240v, 50Hz. No speed control. 5M power cable and plug, without no-volt release.
  • 460 00 023 - 460w, 240v, 50Hz. No speed control. 5M power cable. Without plug. With no-volt release.
  • 460 00 020 - 460w, 240v, 50Hz. No speed control. 5M power cable. Without plug. Without no-volt release.
  • 460 00 013 - 460w, 240v, 50Hz. No speed control. Without power cable and plug. With no-volt release.
  • 460 00 008 - 460w, 240v, 50Hz. No speed control. Without power cable and plug. Without no-volt release.
  • 460 00 031 - 460w, 240v, 60Hz. No speed control. 5M power cable. Without plug. Without no-volt release.
  • 460 00 007 - 460w, 110v, 50Hz. No speed control. 5M power cable, plug and no-volt release.
  • 460 00 025 - 460w, 110v, 50Hz. No speed control. 5M power cable. Without Plug. With no-volt release.
  • 460 00 015 - 460w, 110v, 50Hz. No speed control. Without power cable and plug. With no-volt release.
  • 460 00 022 - 460w, 110v, 50-60Hz. No speed control. 5M power cable and plug. Without no-volt release.
  • 460 00 002 - 460w, 110v, 50-60Hz. No speed control. 5M power cable. Without plug. Without no-volt release.
  • 460 00 010 - 460w, 110v, 50-60Hz. No speed control. Without power cable and plug. Without no-volt release.
  • 460 00 032 - 460w, 100v, 50-60Hz. No speed control. 5M power cable. Without plug. Without no-volt release.
  • 460 00 030 - 460w, 42v, 50Hz. No speed control. 5M power cable. Without plug. With no-volt release.
  • 460 00 003 - 410w, 24v, DC. No speed control. 5M power cable. Without plug. Without no-volt release.
  • 460 00 011 - 410w, 24v, DC. No speed control. Without power cable and plug. Without no-volt release.
  • 460 00 004 - 230w, 12v, DC. No speed control. 5M power cable. Without plug. Without no-volt release.
  • 460 00 012 - 230w, 12V, DC. No speed control. Without power cable and plug. Without no-volt release.
  • 460 01 004 - 700w, 230v, 50Hz. No speed control. 5M power cable, plug and no-volt release.
  • 460 01 001 - 700w, 230v, 50Hz. No speed control. 5M power cable and plug. Without no-volt release.
  • 460 01 010 - 700w, 230v, 50Hz. No speed control. Without power cable and plug. With no-volt release.
  • 460 01 007 - 700w, 230v, 50Hz. No speed control. Without power cable and plug. Without no-volt release.
  • 460 01 020 - 700w, 230v, 50Hz. No speed control. 5M power cable. Without plug. With no-volt release.
  • 460 01 017 - 700w, 230v, 50Hz. No speed control. 5M power cable. Without plug. Without no-volt release.
  • 460 01 022 - 700w, 230v, 50-60Hz. No speed control. 5M power cable and plug. Without no-volt release.
  • 460 01 003 - 700w, 240v, 50Hz. No speed control. 5M power cable and plug with no-volt release.
  • 460 01 000 - 700w, 240v, 50Hz. No speed control. 5M power cable and plug. Without no-volt release.
  • 460 01 019 - 700w, 240v, 50Hz. No speed control. 5M power cable. Without Plug. With no-volt release.
  • 460 01 016 - 700w, 240v, 50Hz. No speed control. 5M power cable. Without Plug. Without no-volt release.
  • 460 01 009 - 700w, 240v, 50Hz. No speed control. Without power cable and plug. With no-volt release.
  • 460 01 006 - 700w, 240v, 50Hz. No speed control. Without power cable and plug. Without no-volt release.
  • 460 01 024 - 700w, 120v, 60Hz. No speed control. 5M power cable. Without plug. Without no-volt release.
  • 460 01 005 - 700w, 110v, 50Hz. No speed control. 5M power cable and plug with no-volt release.
  • 460 01 021 - 700w, 110v, 50Hz. No speed control. 5M power cable. Without plug. With no-volt release.
  • 460 01 011 - 700w, 110v, 50Hz. No speed control. Without power cable and plug. With no-volt release.
  • 460 01 002 - 700w, 110v, 50-60Hz. No speed control. 5M power cable and plug. Without no-volt release.
  • 460 01 018 - 700w, 110v, 50-60Hz. No speed control. 5M power cable. Without plug. Without no-volt release.
  • 460 01 008 - 700w, 110v, 50-60Hz. No speed control. Without power cable and plug. Without no-volt release.
