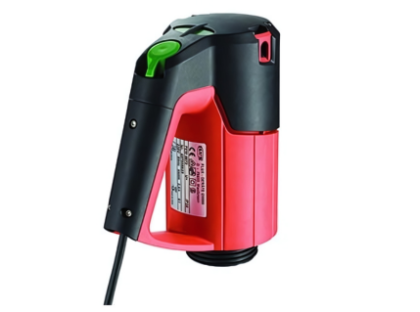

Flux FEM 4070 Commutator Motor

Flux FEM 4070 Commutator Motor


The FLUX FEM 4070 commutator motor is a compact, low weight motor that can be combined with all FLUX pumps. To allow for various pumping volumes it features progressively controllable speed and a concentrated power of 500 watt. The specific shape of the ergonomically designed handle enables safe, single handed operation when starting the barrel pump with the rotary switch and adjustment of the speed with the setting knob. The FEM 4070 includes optimum overload protection in all speed ranges, low noise levels and a long service life. Models are available with no-volt release preventing an unintentional re-start after a sudden loss of power and an integrated suspension option.

  • Double isolated according to class II
  • Splash proof to IP 24
  • Comes with a 5 metre power cable
  • Electronic and thermal overload protection
  • Electronic adjustable power pack with a 4 speed range
  • Models are available with or without a plug and no-volt release.
  • 500W, 230, 240, 120, 110, 100v. 50-60Hz
  • For use with Flux pumps
  • 407 01 000 – 500w, 230v, 50Hz. With speed control. 5M power cable, plug and no-volt release.
  • 407 01 001 – 500w, 230v, 50Hz. With speed control. 5M power cable and plug. Without no-volt release.
  • 407 01 004 – 500w, 230v, 50Hz. With speed control. 5M power cable. Without plug. With no-volt release.
  • 407 01 005 – 500w, 230v, 50Hz. With speed control. 5M power cable. Without plug. Without no-volt release.
  • 407 01 023 – 500w, 230v, 50-60Hz. With speed control. 5M power cable, plug and no-volt release.
  • 407 01 025 – 500w, 230v, 50-60Hz. With speed control. 5M power cable and plug. Without no-volt release.
  • 407 01 008 – 500w, 240v, 50Hz. With speed control. 5M power cable, plug and no-volt release.
  • 407 01 009 – 500w, 240v, 50Hz. With speed control. 5M power cable and plug. Without no-volt release.
  • 407 01 010 – 500w, 240v, 50Hz. With speed control. 5M power cable. Without plug. With no-volt release.
  • 407 01 011 – 500w, 240v, 50Hz. With speed control. 5M power cable. Without plug. Without no-volt release.
  • 407 01 012 – 500w, 120v, 60Hz. With speed control.5M power cable, plug and no-volt release. COF ENC 2 protection class.
  • 407 01 013 – 500w, 120v, 60Hz. With speed control. 5M power cable and plug. Without no-volt release. COF ENC 2 protection class.
  • 407 01 014 – 500w, 120v, 60Hz. With speed control. 5M power cable, plug and no-volt release.
  • 407 01 015 – 500w, 120v, 60Hz. With speed control. 5M power cable and plug. Without no-volt release.
  • 407 01 016 – 500w, 110v, 50Hz. With speed control. 5M Power cable, plug and no-volt release.
  • 407 01 017 – 500w, 110v, 50Hz. With speed control. 5M power cable and plug. Without no-volt release.
  • 407 01 018 – 500w, 110v, 50Hz. With speed control. 5M power cable. Without plug. With no-volt release.
  • 407 01 019 – 500w, 110v, 50Hz. With speed control. 5M power cable. Without plug. Without no-volt release.
  • 407 01 020 – 450w, 100v, 50-60Hz. With speed control. 5M power cable, plug and no-volt release.
  • 407 01 021 – 450w, 100v, 50-60Hz. With speed control. 5M power cable and plug. Without no-volt release.
