Food Grade Peristaltic Pumps
Need help specifying the food grade peristaltic pump? Contact our experts today!
Food Grade Peristaltic Pumps For Gentle, Hygienic Product Transfer
Struggling to move a delicate product without spoiling it, or losing yield to a pump that mashes fruit pieces and breaks up your solids? Food grade peristaltic pumps treat product gently because there is no impeller or gear set shearing it on the way through, so pieces, particulates and shear sensitive fluids arrive intact.
Hygiene is straightforward for the same reason the design is so low maintenance, as your product only ever contacts the inner hose, meaning there are no seals, valves or dead spots for it to sit in, and the hose itself is available in food grade materials including NBR.
They will also run dry without damage, which is useful at the end of a batch or when a hopper empties. From bakery fillings and flavour dosing through to sauces, purees and solid laden food stuffs, talk to our pump experts and we will specify the right food grade peristaltic pump for your process.
View our full range of peristaltic pumps today and get in touch with one of our many experts at Castle Pumps!
products
- Max Flow Rate: 1.4lpm
- Max Head: 20M
- Max Temperature: 80ºC
- Max Viscosity: 8000 cP
- Solids: 8mm
- Max Flow Rate: 0.64lpm
- Max Head: 20M
- Max Temperature: 80ºC
- Max Viscosity: 8000 cP
- Solids: 8mm
- Max Flow Rate: 6.8lpm
- Max Head: 80M
- Max Temperature: 80ºC
- Max Viscosity: 20000 cP
- Solids: 16mm
- Size: 3/4"
- Max Flow Rate: 2.4lpm
- Max Head: 80M
- Max Temperature: 80ºC
- Max Viscosity: 20000 cP
- Solids: 10mm
- Size: 3/8"
- Max Flow Rate: 3.9lpm
- Max Head: 80M
- Max Temperature: 80ºC
- Max Viscosity: 20000 cP
- Solids: 13mm
- Size: 3/8"
- Max Flow Rate: 9.6lpm
- Max Head: 80M
- Max Temperature: 80ºC
- Max Viscosity: 20000 cP
- Solids: 16mm
- Size: 3/4"
- Max Flow Rate: 12.9lpm
- Max Head: 80M
- Max Temperature: 80ºC
- Max Viscosity: 20000 cP
- Solids: 19mm
- Size: 1"
- Max Flow Rate: 20lpm
- Max Head: 80M
- Max Temperature: 80ºC
- Max Viscosity: 20000 cP
- Solids: 22mm
- Size: 1"
- Max Flow Rate: 33.3lpm
- Max Head: 80M
- Max Temperature: 80ºC
- Max Viscosity: 30000 cP
- Solids: 28mm
- Size: 1 1/4"
- Max Flow Rate: 65lpm
- Max Head: 80M
- Max Temperature: 80ºC
- Max Viscosity: 30000 cP
- Solids: 35mm
- Size: 1 1/2"
- Max Flow Rate: 86.7lpm
- Max Head: 80M
- Max Temperature: 80ºC
- Max Viscosity: 30000 cP
- Solids Size: 40mm
- Size: 1 1/2"
- Max Flow Rate: 186.6lpm
- Max Head: 80M
- Max Temperature: 80ºC
- Max Viscosity: 30000 cP
- Solids: 55mm
- Size: 2"
FAQs

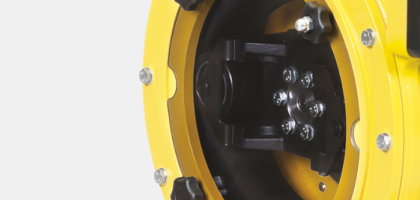

Peristaltic pumps are part of the rotary positive displacement pump family. They are made up of just two components; a rotor that has a number of rollers or a "shoe" attached and a flexible internal hose/tube fitted inside a circular pump casing. As the rotor turns, the attached rollers compress the tube where the fluid is contained, and that continuous motion forces the liquid from the pump's inlet to its outlet.
The key difference is the component attached to the pump’s rotor which compresses the hose as the rotor turns. Roller peristaltic pumps generate less friction with up to 30% less power consumption and a lower starting torque for a smoother operation and easily adjustable speed. Shoe peristaltic pumps offer higher pressure capabilities for more heavy duty requirements.
The beauty of the peristaltic pump design it it's single wearing part; the inner hose. Whilst other pumps have seals, impellers, bearings, gaskets and coupling bushes to maintain over time, peristaltic pumps only have to replace the inner hose. This combine with the absence of a mechanical seal means that they can also run dry indefinitely without risk of damage.
Ensuring compatibility with the fluid being pumped is a vital part of peristaltic pump specification to avoid swelling, erosion and even melting of the inner hose. Our Boyser peristaltic pumps are available with Natural Rubber, NBR, EPDM, Norprene, Tygon and Hypalon hoses. Upon disclosure of the fluid you are handling we will establish the best solution.
Yes. The inner hose, which is the only part that comes into contact with the fluid, is available in food grade materials including NBR.
One of the great features of the peristaltic design is its ability to run dry without damage. This can give peace of mind when being used unmanned or to empty a tank or container.
The FDA states that in order to be food grade, the food contact surfaces of a food transfer pump need to be smooth, free of cracks and crevices, non-absorbent, cleanable, non-toxic and corrosion resistant to ensure that no food or bacteria can harbour and contaminate the product so that it remains safe for human consumption.
All products that we offer for food are as a minimum constructed of FDA approved materials for human consumption. Where more stringent approval is required, we also offer food industry pumps certified to 3A and EHEDG.
